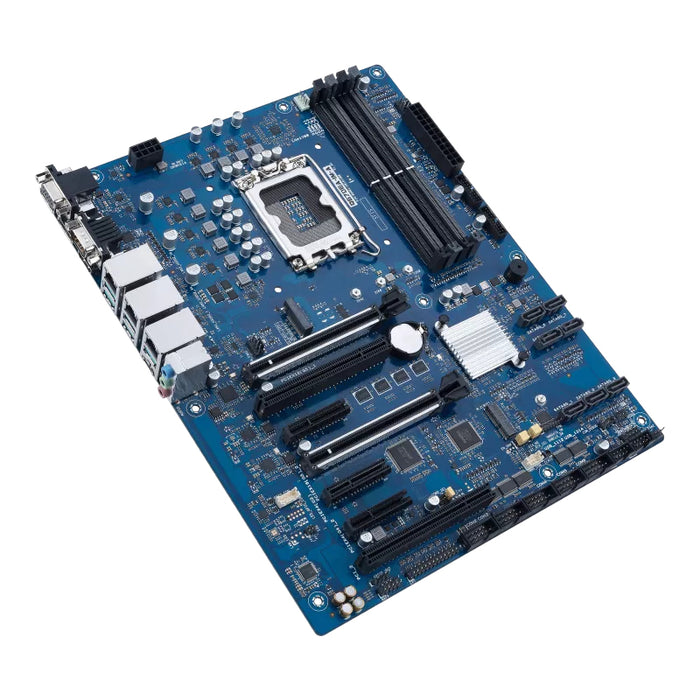

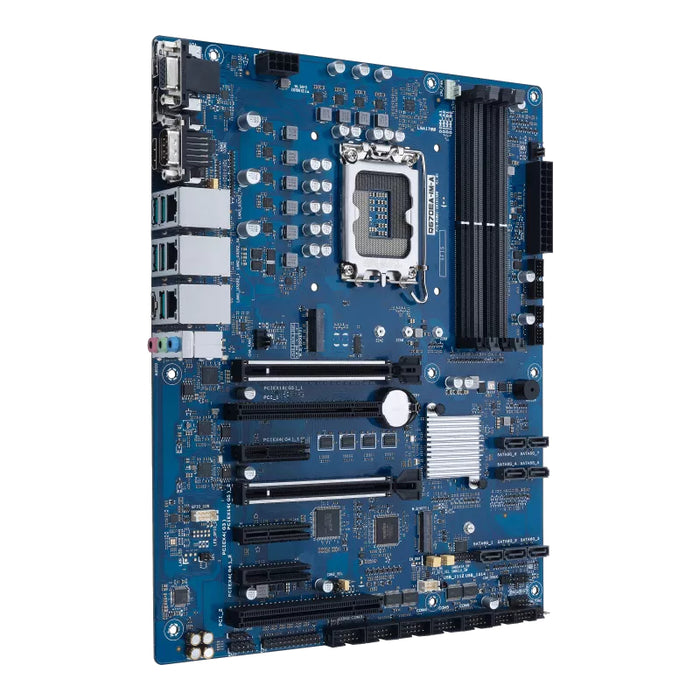

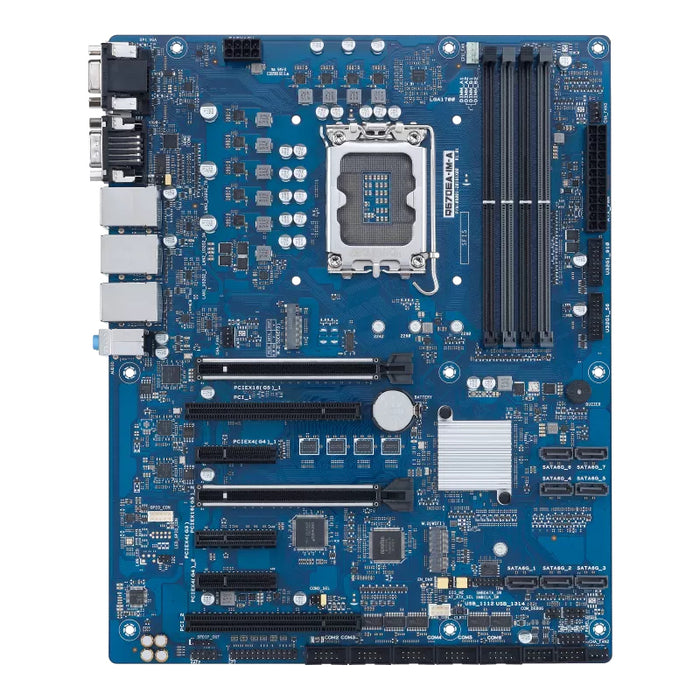

Q670E ATX motherboard, LGA1700 Socket for 14th/13th/12th Gen Intel CPU, 125W TDP, 4*U-DIMM, 3*Lan, 2*PCIe x16 slots, 2*PCI, VGA, HDMI, DP++, 2*M.2 slot, 6*COM, 7*SATA, USB 3.2 Gen 2, USB Type C
The ASUS Q670EA-IM-A is an ATX industrial motherboard featuring rich I/O capabilities and advanced connectivity. It offers multiple display outputs, legacy options for industrial applications, COM ports and three Intel LAN ports. And there is rich expandability with a PCIe slot, PCI slot, M.2 E key, and M.2 M key. This makes the ASUS Q670EA-IM-A an ideal choice for a wide range of embedded applications.
As the world’s No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
Processor
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Supported memory clock speeds: 3600,4000,4400 MHz
Maximum internal memory: 128 GB
Storage controllers
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 7
Feature: RAID support
RAID levels: 0, 1, 5, 10
Graphics
Maximum resolution: 4096 x 2160 pixels
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 7
Feature: S/PDIF out connector
Feature: Front panel audio connector
Feature: ATX Power connector (24-pin)
Number of chassis fan connectors: 1
Feature: Chassis intrusion connector
Feature: EPS power connector (8-pin)
Number of COM connectors: 5
Feature: TPM connector
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 3
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort version: 1.4
Feature: Line-in
Feature: Microphone in
Serial ports quantity: 1
Network
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
LAN controller: Intel® I210-AT, Intel I226-LM, Intel I226-V
Features
Motherboard chipset: Intel Q670E
Audio chip: Realtek ALC897
Motherboard form factor: ATX
Motherboard chipset family: Intel
Feature: Linux operating systems supported
Windows operating systems supported: Windows 10 IoT Enterprise, Windows 10 x64
Certification: CE, FCC, BSMI, VCCI, RCMCE-LVD
Expansion slots
PCI Express x4 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 2
PCI slots: 2
Number of M.2 (M) slots: 2
Operational conditions
Storage temperature (T-T): -40 - 85 °C
Operating temperature (T-T): 0 - 60 °C
Operating relative humidity (H-H): 10 - 95%
Weight & dimensions
Width: 305 mm
Depth: 244 mm
Other features
PCI Express x4 (Gen 3.x) slots: 1
ASUS Q670EA-IM-A. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Intel® I210-AT, Intel I226-LM, Intel I226-V
ASUS
MBR CODE - 90ME06J0-M0ECY0
EAN - 4711081950271
