Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Processor manufacturer |
Intel |
Processor socket |
LGA 1851 (Socket V1) |
Compatible processor series |
Intel Core Ultra (Series 2) |
Supported processor sockets |
LGA 1851 |
Supported memory types |
DDR5-SDRAM |
Number of memory slots |
4 |
Memory slots type |
DIMM |
Memory channels |
Dual-channel |
ECC сompatibility |
ECC & Non-ECC |
Supported memory clock speeds |
5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7800,7950,8200,8266,8400,8600,8800,8933,9066,9200,9333,9466,9500 MHz |
Supported memory clock speed (max) |
9500 MHz |
Maximum internal memory |
256 GB |
Unbuffered memory |
Yes |
Maximum internal memory per slot |
64 GB |
Supported storage drive types |
HDD & SSD |
Supported storage drive interfaces |
M.2, SATA III |
Number of HDDs supported |
8 |
Number of storage drives supported |
12 |
RAID support |
Yes |
RAID levels |
0, 1, 5, 10 |
Parallel processing technology support |
Not supported |
DirectX version |
12.0 |
USB 2.0 connectors |
2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
USB 3.2 Gen 2x2 connectors |
2 |
Number of SATA III connectors |
8 |
Front panel audio connector |
Yes |
Front panel connector |
Yes |
ATX Power connector (24-pin) |
Yes |
CPU fan connector |
Yes |
Number of CPU fan connectors |
2 |
Number of chassis fan connectors |
6 |
EPS power connector (8-pin) |
Yes |
Number of EPS power connectors (8-pin) |
2 |
TPM connector |
Yes |
Thunderbolt headers |
1 |
Number of water pump connectors |
2 |
RGB LED pin header |
Yes |
Number of RGB LED pin headers |
4 |

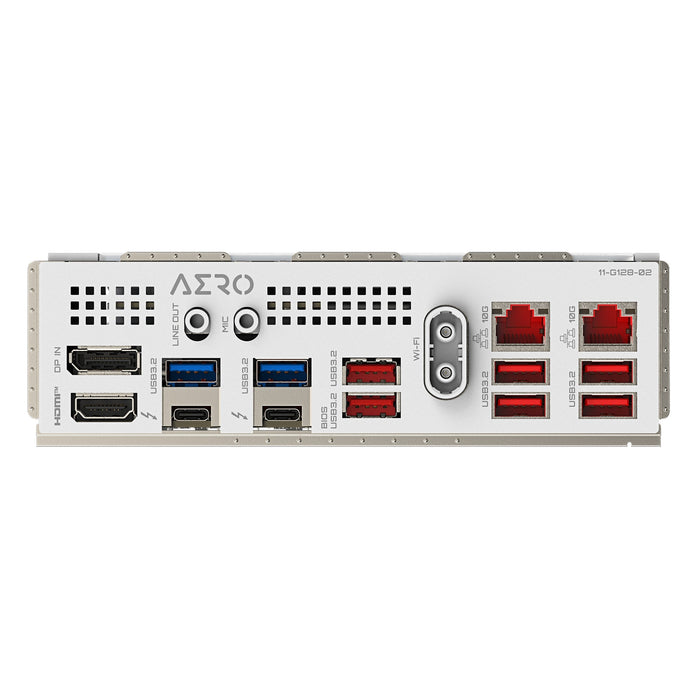

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
6 |
Ethernet LAN (RJ-45) ports |
2 |
HDMI ports quantity |
1 |
DisplayPorts quantity |
1 |
Headphone outputs |
1 |
Line-in |
Yes |
Thunderbolt ports quantity |
2 |
WiFi-AP antenna jack |
2 |
Ethernet LAN |
Yes |
Ethernet interface type |
10 Gigabit Ethernet |
LAN controller |
Marvell AQtion AQC113C |
Wi-Fi |
Yes |
Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
Wi-Fi standards |
Wi-Fi 7 (802.11be) |
WLAN controller model |
Intel Wi-Fi 7 BE200 |
Bluetooth |
Yes |
Bluetooth version |
5.4 |
Motherboard chipset |
Intel Z890 |
Audio chip |
ESS ES9260 |
Audio output channels |
2.0 channels |
Product colour |
White |
PC health monitoring |
Fan, Noise, Temperature, Voltage |
Component for |
PC |
Motherboard form factor |
Extended ATX |
Motherboard chipset family |
Intel |
Windows operating systems supported |
Windows 11 x64 |
PCI Express x16 (Gen 4.x) slots |
1 |
PCI Express x16 (Gen 5.x) slots |
2 |
Number of M.2 (M) slots |
4 |
1st M.2 largest key size |
25110 |
1st M.2 highest PCI Express generation |
5.0 |
2nd M.2 largest key size |
25110 |
2nd M.2 highest PCI Express generation |
4.0 |
3rd M.2 largest key size |
22110 |
3rd M.2 highest PCI Express generation |
4.0 |
4th M.2 largest key size |
22110 |
4th M.2 highest PCI Express generation |
4.0 |
BIOS type |
UEFI AMI |
BIOS memory size |
256 Mbit |
ACPI version |
5.0 |
Clear CMOS jumper |
Yes |
Clear CMOS button |
Yes |
Desktop Management Interface (DMI) version |
2.7 |
System Management BIOS (SMBIOS) version |
2.7 |
Country of origin |
China |
Products per shipping (inner) case |
1 pc(s) |
Battery weight |
3 g |
Lithium weight per battery |
0.07 g |
Number of battery cells |
1 |
Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
Battery type |
CR2032 |
Package width |
400 mm |
Package depth |
335 mm |
Package height |
430 mm |
Package weight |
4 kg |
Width |
305 mm |
Depth |
285 mm |
Height |
35 mm |
Batteries included |
Yes |
Antenna included |
Yes |
Screws included |
Yes |
Bundled software |
Norton® Internet Security (OEM version)
LAN bandwidth management software |
Weight |
3.42 kg |
Warranty period |
3 year(s) |
