ProcessorProcessor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Maximum number of SMP processors: 1
Supported processor sockets: LGA 1700
MemorySupported memory types: DDR5-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600 MHz
Supported memory clock speed (max): 7600 MHz
Maximum internal memory: 64 GB
Feature: Unbuffered memory
Storage controllersSupported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
Feature: RAID support
RAID levels: 0, 1, 5, 10
GraphicsParallel processing technology support: Not supported
Internal I/OUSB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of chassis fan connectors: 1
Feature: EPS power connector (8-pin)
Feature: 12V power connector
Feature: RGB LED pin header

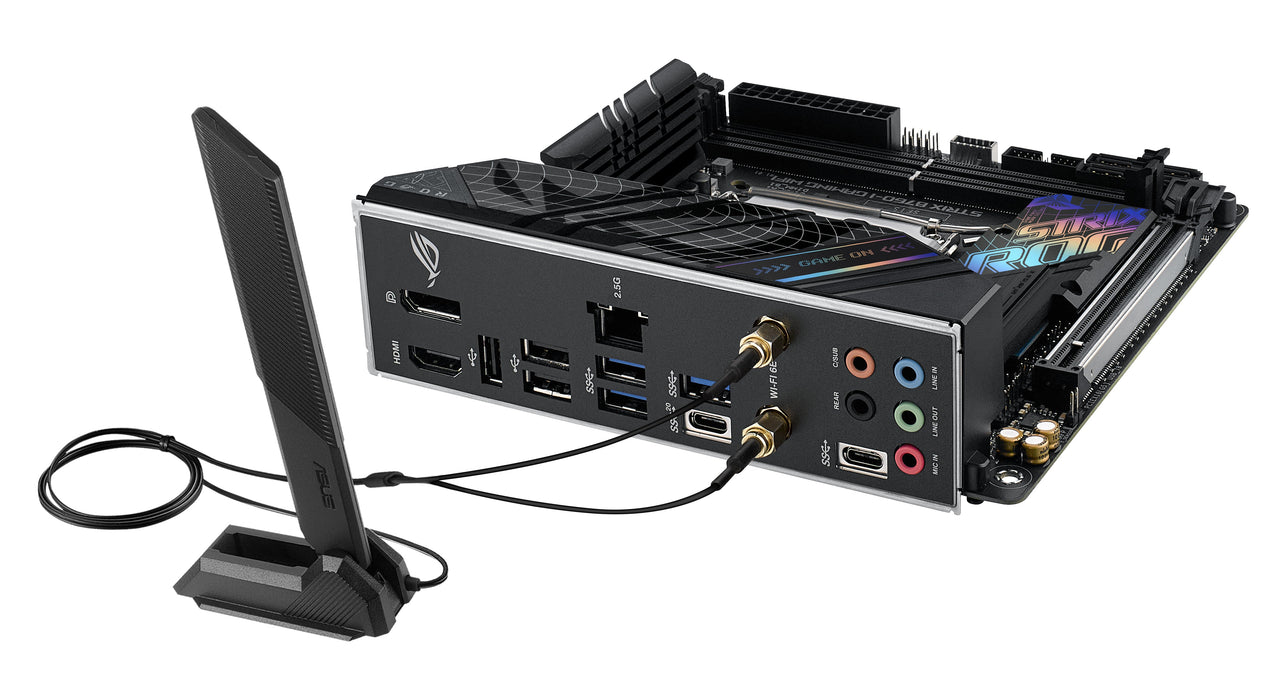

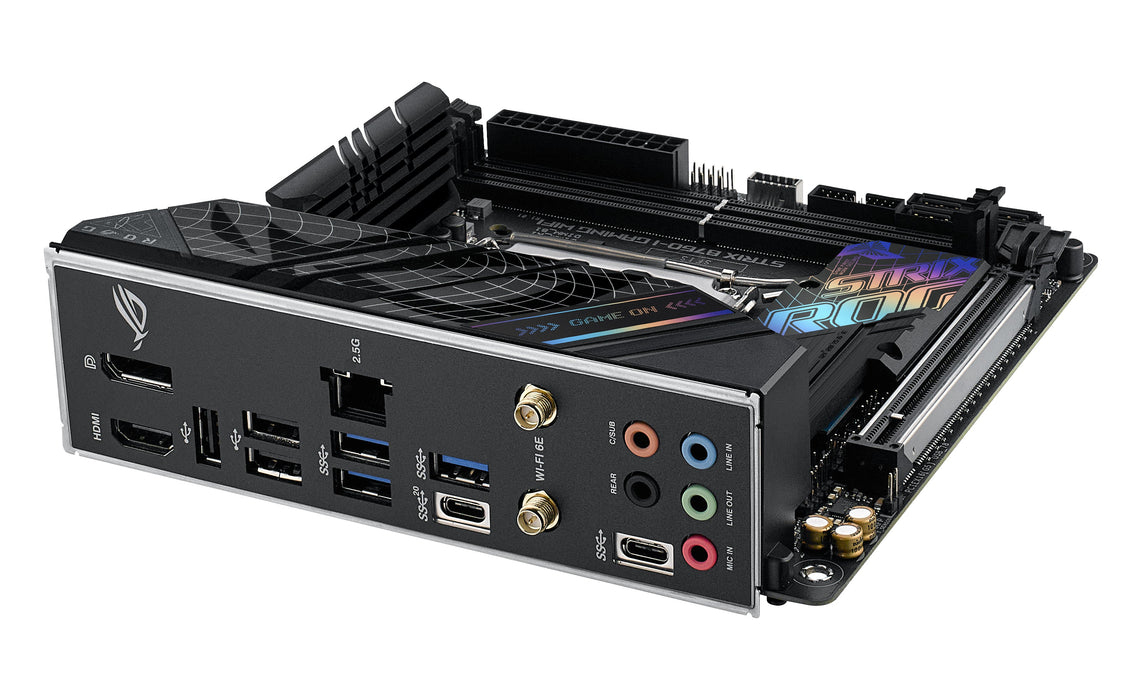

Rear panel I/O portsUSB 2.0 ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
Headphone outputs: 1
Feature: Line-in
Feature: Microphone in
NetworkFeature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Feature: Bluetooth
Bluetooth version: 5.3
FeaturesMotherboard chipset: Intel B760
Audio chip: SupremeFX S1220A
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: mini ITX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slotsPCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2
BIOSBIOS type: UEFI AMI
BIOS memory size: 128 Mbit
Packaging dataPackage width: 226 mm
Package depth: 94 mm
Package height: 185 mm
Package weight: 1.28 kg
Weight & dimensionsWidth: 170 mm
Depth: 170 mm
Height: 50 mm

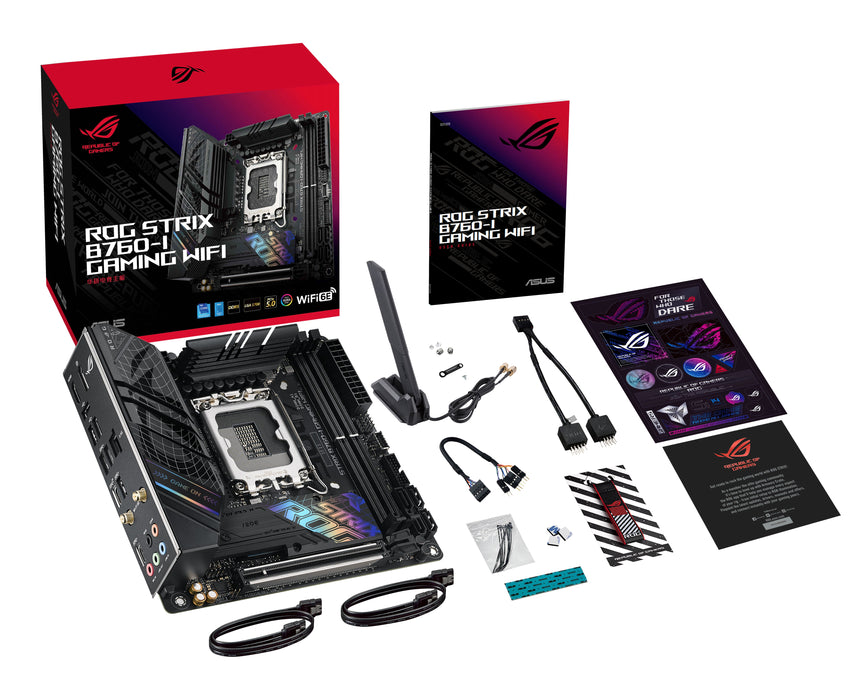

Packaging contentCables included: SATA
Feature: User guide
Other featuresWeight: 644 g

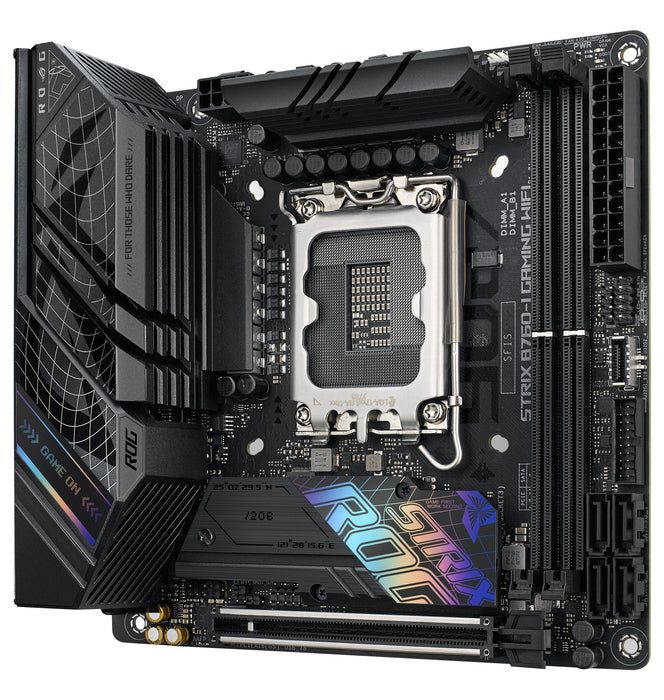

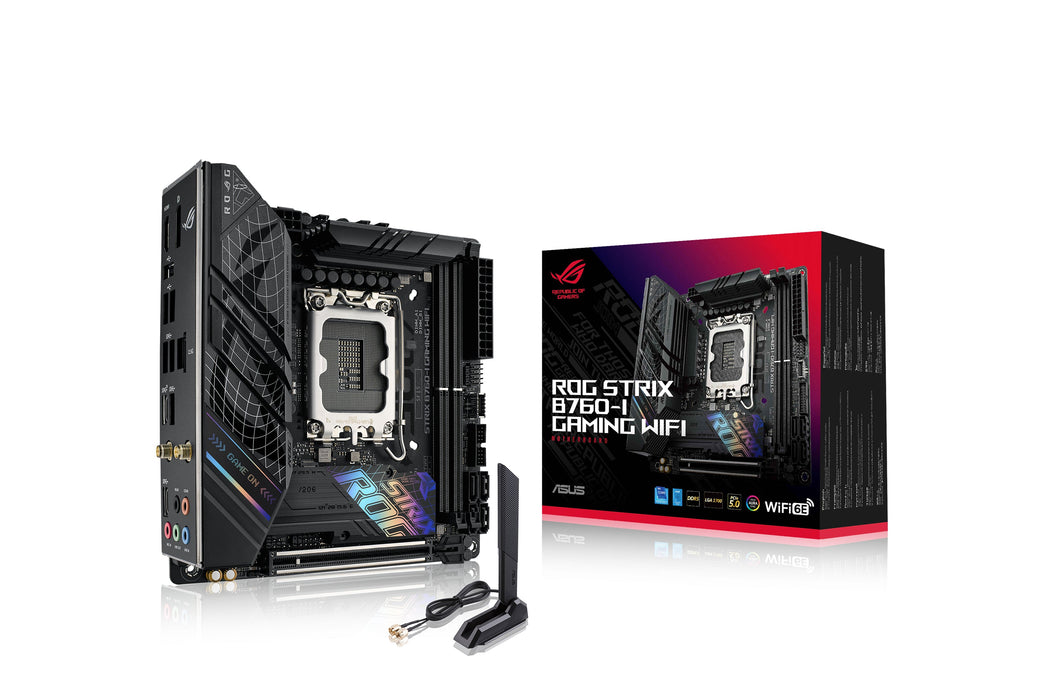

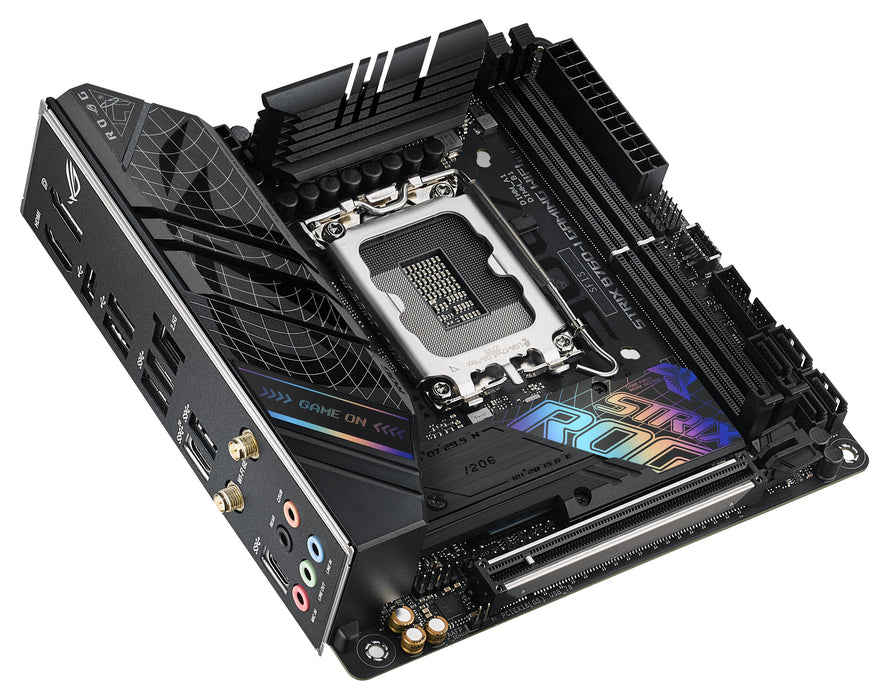

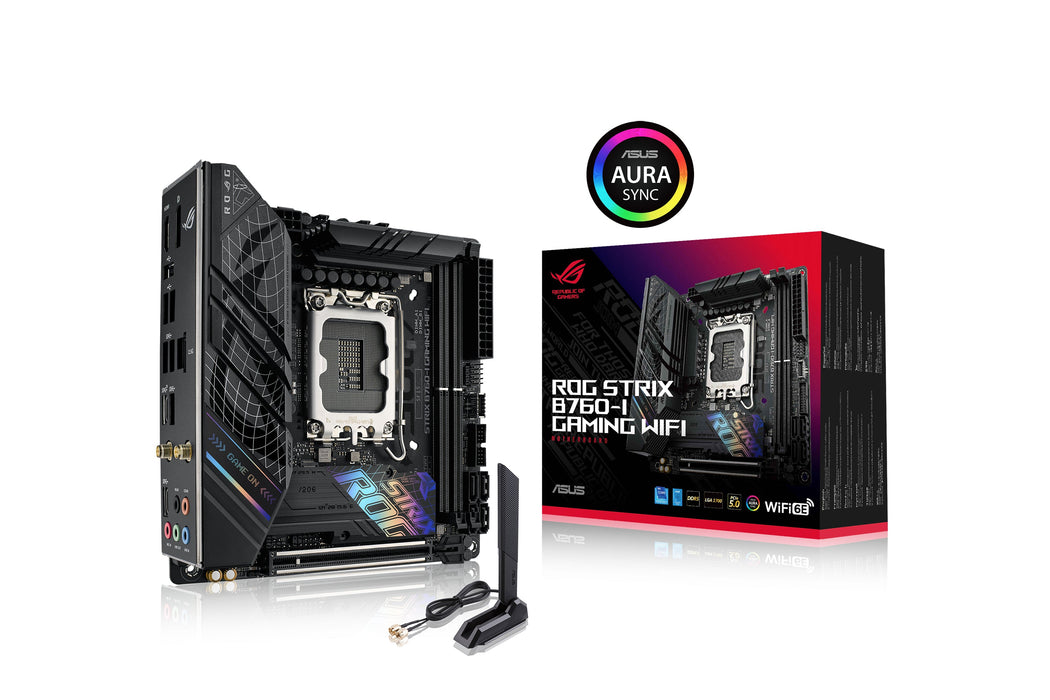

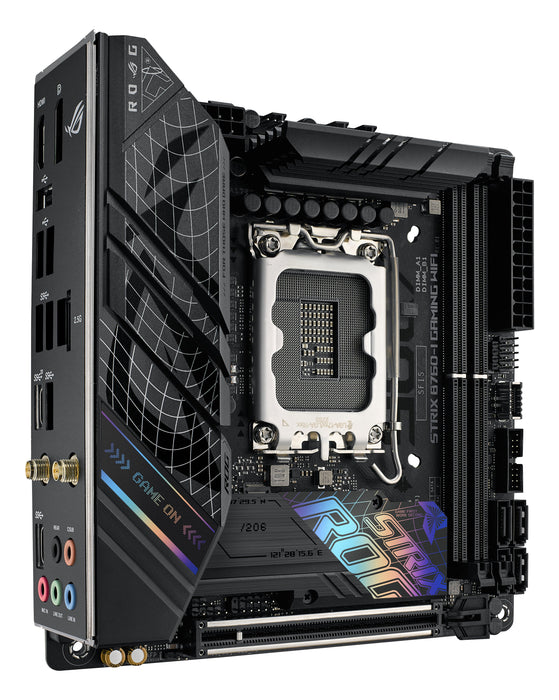

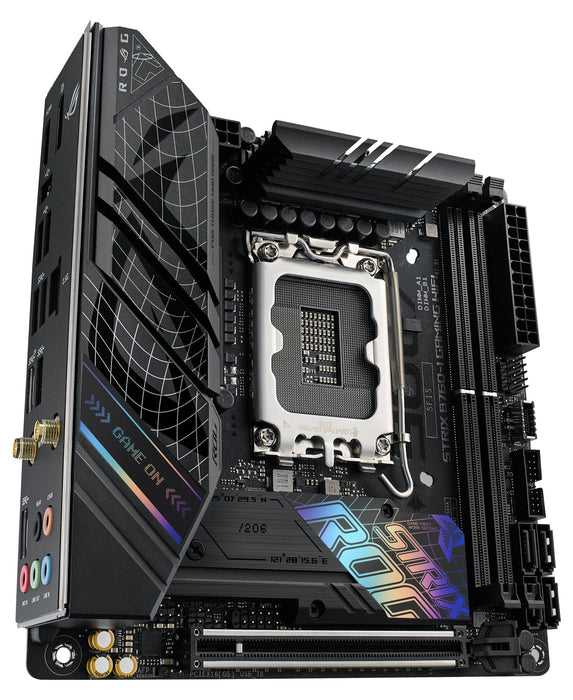

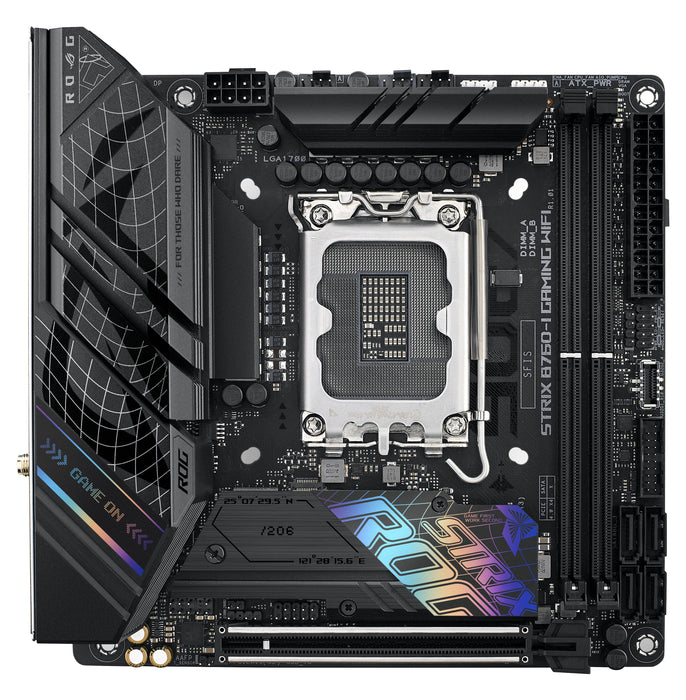

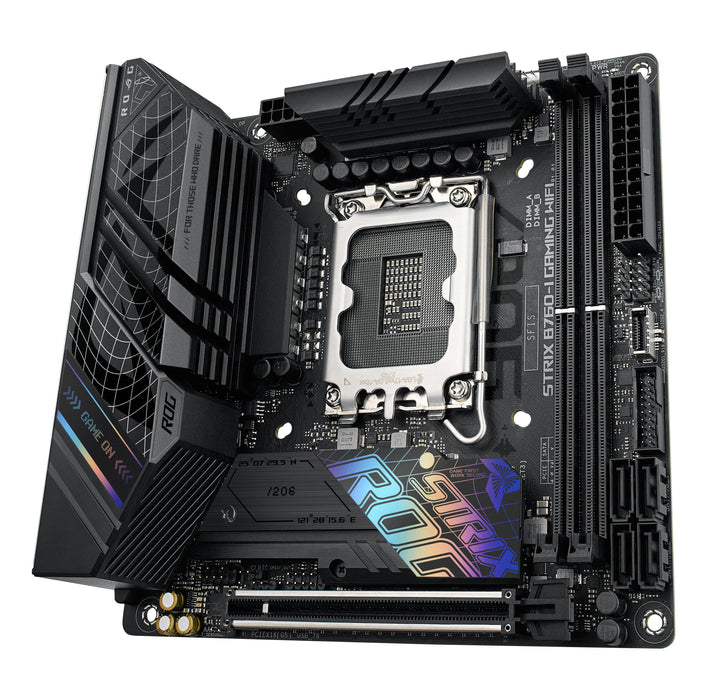

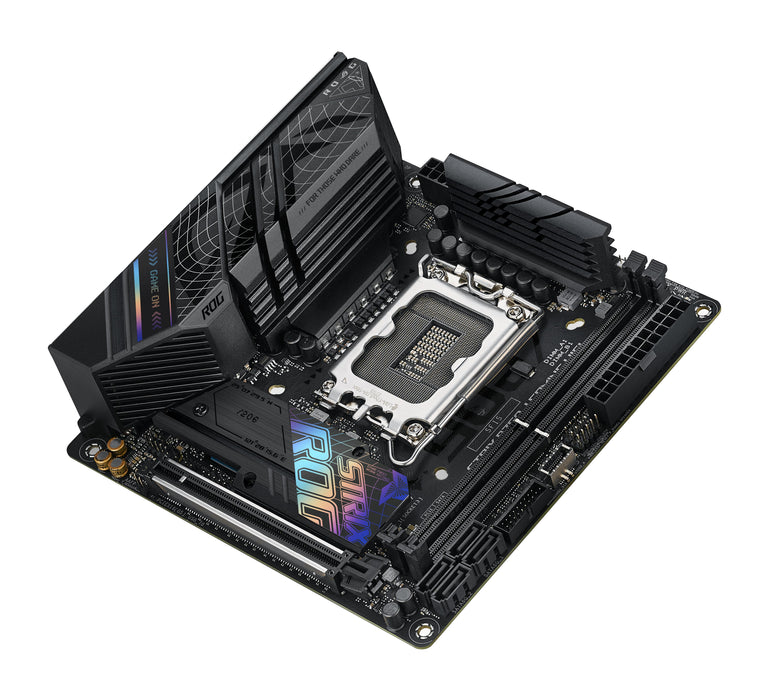

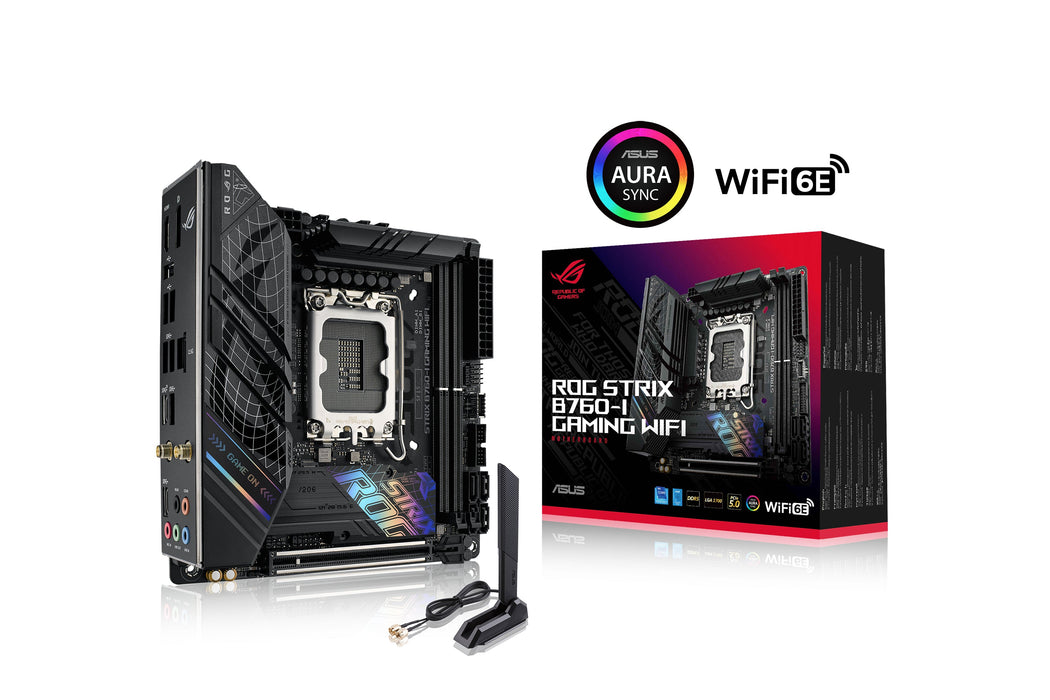

ASUS ROG STRIX B760-I GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: mini ITX, Motherboard chipset family: Intel
ASUS
MBR CODE - 90MB1D90-M0EAY0
EAN - 4711081997658
Processor manufacturer |
Intel |
Processor socket |
LGA 1700 |
Compatible processor series |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
Maximum number of SMP processors |
1 |
Supported processor sockets |
LGA 1700 |
Supported memory types |
DDR5-SDRAM |
Number of memory slots |
2 |
Memory slots type |
DIMM |
Memory channels |
Dual-channel |
ECC сompatibility |
Non-ECC |
Supported memory clock speeds |
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600 MHz |
Supported memory clock speed (max) |
7600 MHz |
Maximum internal memory |
64 GB |
Unbuffered memory |
Yes |
Supported storage drive types |
HDD & SSD |
Supported storage drive interfaces |
M.2, SATA III |
Number of HDDs supported |
4 |
Number of storage drives supported |
6 |
RAID support |
Yes |
RAID levels |
0, 1, 5, 10 |
Parallel processing technology support |
Not supported |
USB 2.0 connectors |
1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
Number of SATA III connectors |
4 |
Front panel audio connector |
Yes |
ATX Power connector (24-pin) |
Yes |
CPU fan connector |
Yes |
Number of chassis fan connectors |
1 |
EPS power connector (8-pin) |
Yes |
12V power connector |
Yes |
RGB LED pin header |
Yes |
USB 2.0 ports quantity |
3 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
Ethernet LAN (RJ-45) ports |
1 |
HDMI ports quantity |
1 |
DisplayPorts quantity |
1 |
Headphone outputs |
1 |
Line-in |
Yes |
Microphone in |
Yes |
Ethernet LAN |
Yes |
Ethernet interface type |
2.5 Gigabit Ethernet |
Wi-Fi |
Yes |
Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
Bluetooth |
Yes |
Bluetooth version |
5.3 |
Motherboard chipset |
Intel B760 |
Audio chip |
SupremeFX S1220A |
Audio output channels |
7.1 channels |
Component for |
PC |
Motherboard form factor |
mini ITX |
Motherboard chipset family |
Intel |
Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
PCI Express x16 (Gen 5.x) slots |
1 |
Number of M.2 (M) slots |
2 |
BIOS type |
UEFI AMI |
BIOS memory size |
128 Mbit |
Package width |
226 mm |
Package depth |
94 mm |
Package height |
185 mm |
Package weight |
1.28 kg |
Width |
170 mm |
Depth |
170 mm |
Height |
50 mm |
Cables included |
SATA |
User guide |
Yes |
Weight |
644 g |
