ProcessorProcessor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets: LGA 1700
MemorySupported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz
Supported memory clock speed (max): 5333 MHz
Maximum internal memory: 64 GB
Feature: Unbuffered memory
Storage controllersSupported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
Feature: RAID support
RAID levels: 0, 1, 5, 10
GraphicsParallel processing technology support: Not supported
Internal I/OUSB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Feature: S/PDIF out connector
Feature: Front panel audio connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of chassis fan connectors: 1
Feature: EPS power connector (8-pin)
Number of COM connectors: 1
Feature: TPM connector
Feature: 12V power connector
Feature: RGB LED pin header

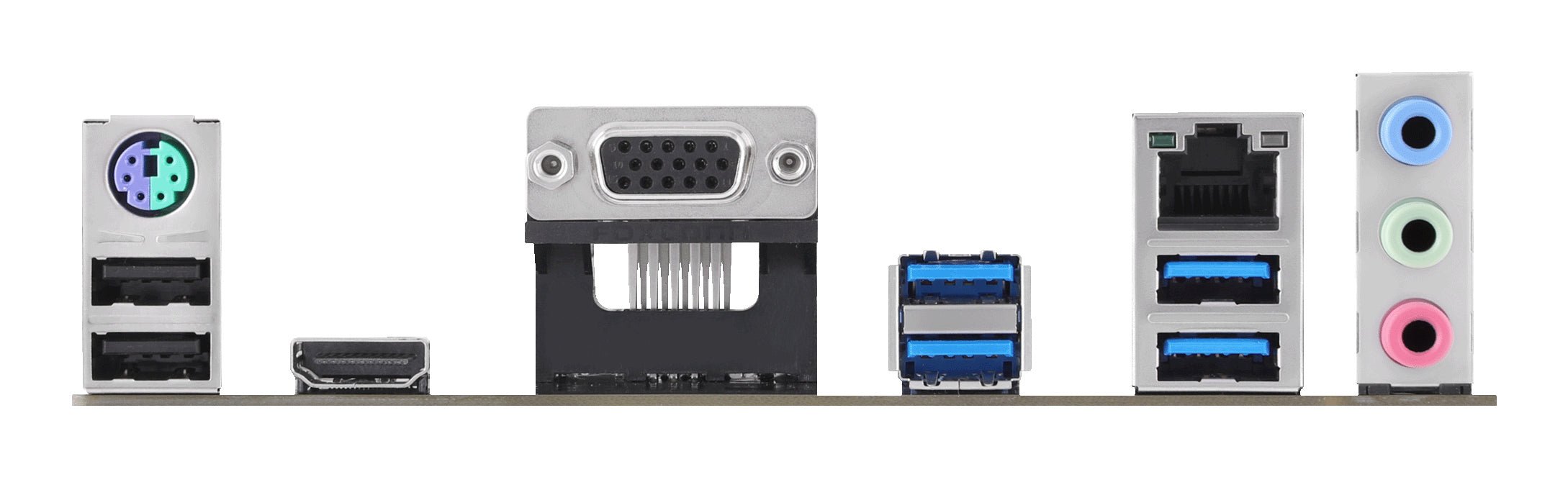

Rear panel I/O portsUSB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
Feature: Microphone in
USB connector type: USB Type-A
NetworkFeature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
Feature: Wake-on-LAN ready
FeaturesMotherboard chipset: Intel B760
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11
Expansion slotsPCI Express x1 (Gen 4.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
BIOSBIOS type: UEFI AMI
BIOS memory size: 128 Mbit
Packaging dataPackage width: 270 mm
Package depth: 51.5 mm
Package height: 263 mm
Package weight: 926.3 g
Weight & dimensionsWidth: 244 mm
Depth: 211 mm
Height: 36 mm
Packaging contentCables included: SATA
Other featuresWeight: 528 g
ASUS PRIME B760M-K D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A. Ethernet interface type: 2.5 Gigabit Ethernet
ASUS
MBR CODE - 90MB1DS0-M0EAY0
EAN - 4711387006917
Processor manufacturer |
Intel |
Processor socket |
LGA 1700 |
Compatible processor series |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
Supported processor sockets |
LGA 1700 |
Supported memory types |
DDR4-SDRAM |
Number of memory slots |
2 |
Memory slots type |
DIMM |
Memory channels |
Dual-channel |
ECC сompatibility |
Non-ECC |
Supported memory clock speeds |
2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz |
Supported memory clock speed (max) |
5333 MHz |
Maximum internal memory |
64 GB |
Unbuffered memory |
Yes |
Supported storage drive types |
HDD & SSD |
Supported storage drive interfaces |
M.2, SATA III |
Number of HDDs supported |
4 |
Number of storage drives supported |
6 |
RAID support |
Yes |
RAID levels |
0, 1, 5, 10 |
Parallel processing technology support |
Not supported |
USB 2.0 connectors |
2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
Number of SATA III connectors |
4 |
S/PDIF out connector |
Yes |
Front panel audio connector |
Yes |
ATX Power connector (24-pin) |
Yes |
CPU fan connector |
Yes |
Number of chassis fan connectors |
1 |
EPS power connector (8-pin) |
Yes |
Number of COM connectors |
1 |
TPM connector |
Yes |
12V power connector |
Yes |
RGB LED pin header |
Yes |
USB 2.0 ports quantity |
2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
Ethernet LAN (RJ-45) ports |
1 |
PS/2 ports quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
HDMI ports quantity |
1 |
Microphone in |
Yes |
USB connector type |
USB Type-A |
Ethernet LAN |
Yes |
Ethernet interface type |
2.5 Gigabit Ethernet |
Wake-on-LAN ready |
Yes |
Wi-Fi |
No |
Motherboard chipset |
Intel B760 |
Audio output channels |
7.1 channels |
Component for |
PC |
Motherboard form factor |
micro ATX |
Motherboard chipset family |
Intel |
Windows operating systems supported |
Windows 10 x64, Windows 11 |
PCI Express x1 (Gen 4.x) slots |
2 |
PCI Express x16 (Gen 4.x) slots |
1 |
Number of M.2 (M) slots |
2 |
BIOS type |
UEFI AMI |
BIOS memory size |
128 Mbit |
Package width |
270 mm |
Package depth |
51.5 mm |
Package height |
263 mm |
Package weight |
926.3 g |
Width |
244 mm |
Depth |
211 mm |
Height |
36 mm |
Cables included |
SATA |
Weight |
528 g |
