ProcessorProcessor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Maximum number of SMP processors: 1
Supported processor sockets: LGA 1700
MemorySupported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
Maximum internal memory: 192 GB
Storage controllersSupported storage drive types: SSD
Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0
Internal I/OUSB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Feature: Audio connector
Feature: ATX Power connector (24-pin)
Feature: Power fan connector

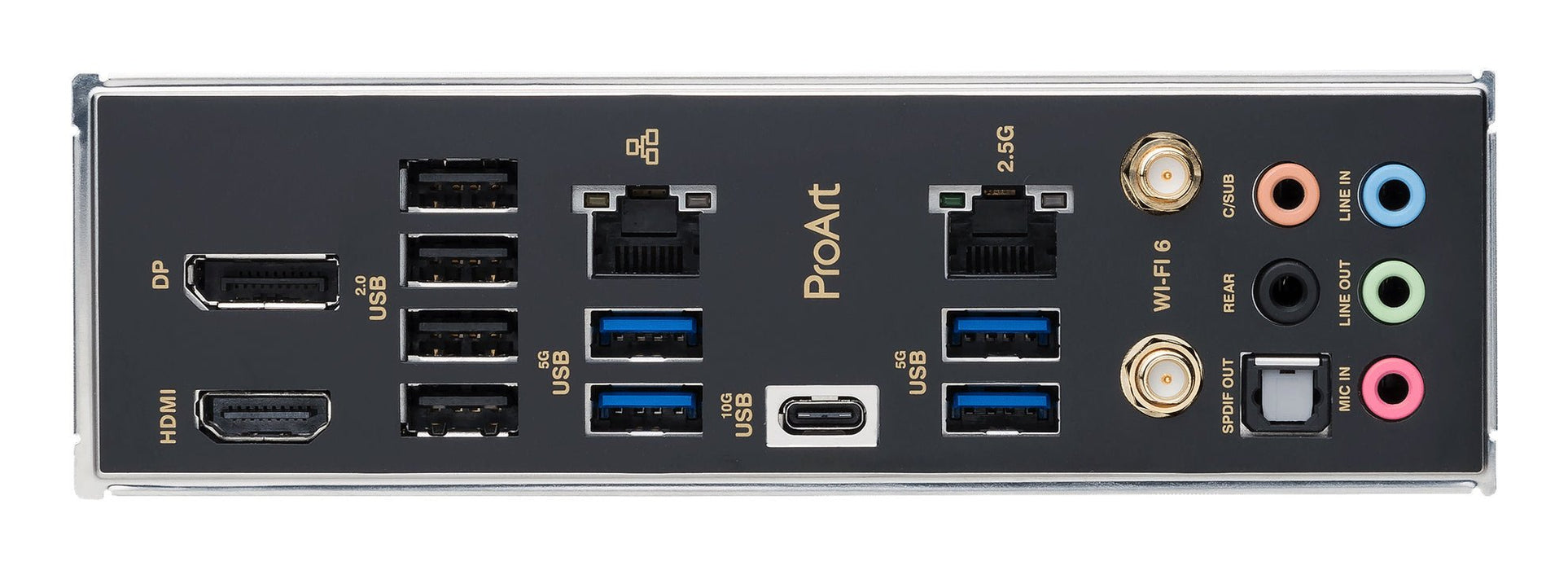

Rear panel I/O portsUSB 2.0 ports quantity: 6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
HDMI ports quantity: 1
DisplayPorts quantity: 1
Headphone outputs: 5
Feature: S/PDIF out port
USB connector type: USB Type-A, USB Type-C
NetworkFeature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN controller model: Intel Wi-Fi 6 AX201
FeaturesMotherboard chipset: Intel B760
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: Intel
Cooling type: liquid
Expansion slotsPCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 3

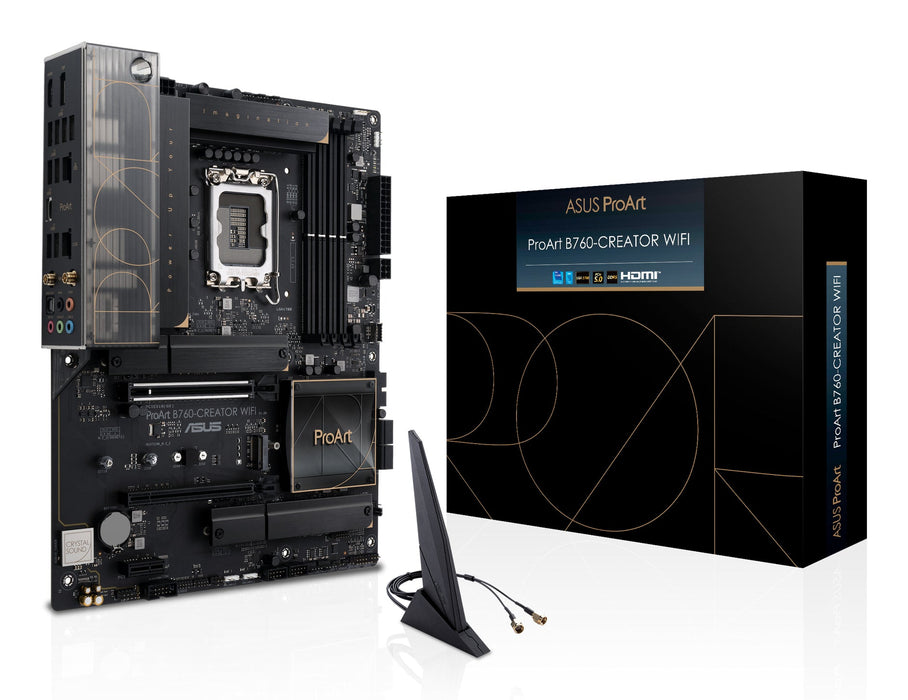

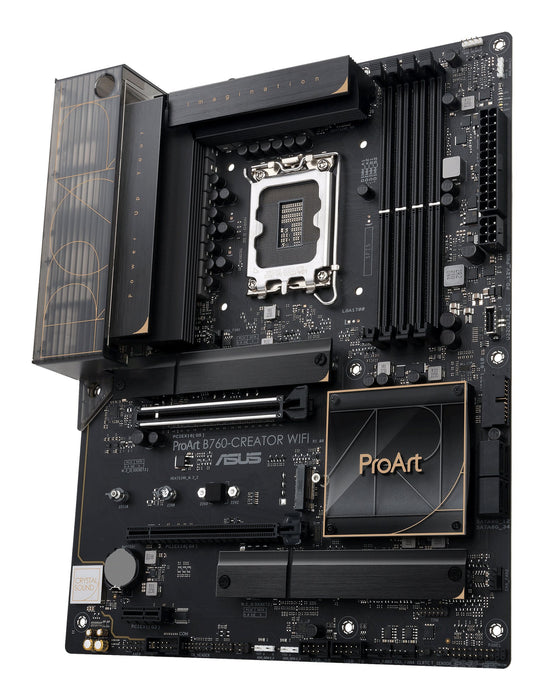

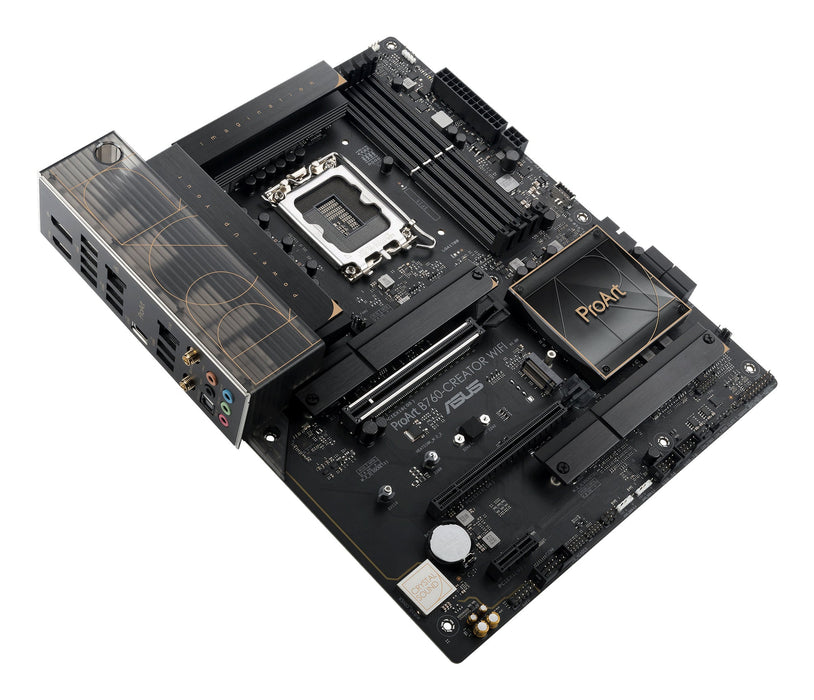

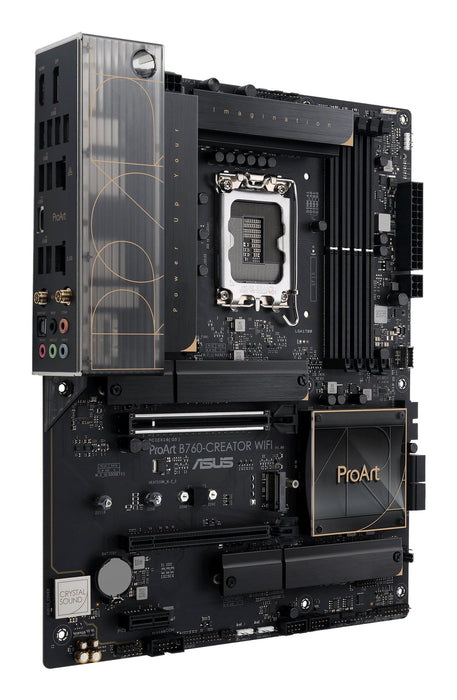

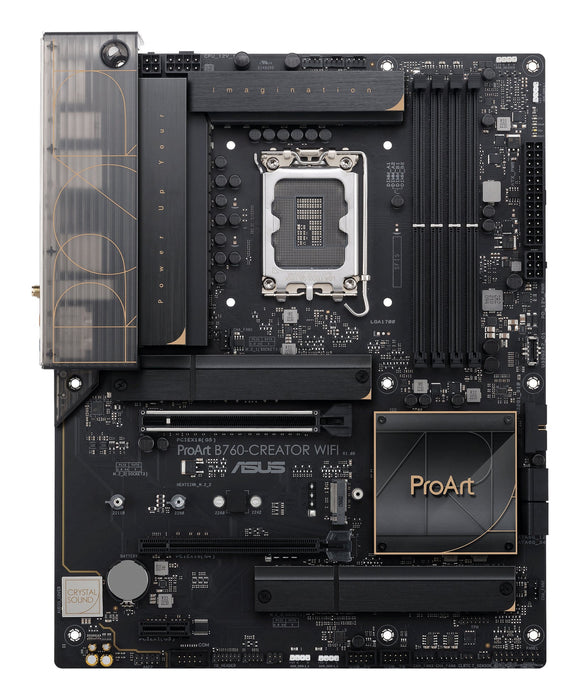

ASUS 90MB1FY0-M0EAY0. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, Supported storage drive types: SSD. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
ASUS
MBR CODE - 90MB1FY0-M0EAY0
EAN - 4711387275962
Processor manufacturer |
Intel |
Processor socket |
LGA 1700 |
Compatible processor series |
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
Maximum number of SMP processors |
1 |
Supported processor sockets |
LGA 1700 |
Supported memory types |
DDR5-SDRAM |
Number of memory slots |
4 |
Memory slots type |
DIMM |
Memory channels |
Dual-channel |
Maximum internal memory |
192 GB |
Supported storage drive types |
SSD |
Supported storage drive interfaces |
M.2, PCI Express 3.0, PCI Express 4.0 |
USB 2.0 connectors |
2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
4 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
Audio connector |
Yes |
ATX Power connector (24-pin) |
Yes |
Power fan connector |
Yes |
USB 2.0 ports quantity |
6 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
Ethernet LAN (RJ-45) ports |
2 |
HDMI ports quantity |
1 |
DisplayPorts quantity |
1 |
Headphone outputs |
5 |
S/PDIF out port |
Yes |
USB connector type |
USB Type-A, USB Type-C |
Ethernet LAN |
Yes |
Ethernet interface type |
2.5 Gigabit Ethernet, Gigabit Ethernet |
Wi-Fi |
Yes |
Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
WLAN controller model |
Intel Wi-Fi 6 AX201 |
Motherboard chipset |
Intel B760 |
Audio output channels |
7.1 channels |
Component for |
PC |
Motherboard form factor |
ATX |
Motherboard chipset family |
Intel |
Cooling type |
liquid |
PCI Express x16 (Gen 3.x) slots |
1 |
PCI Express x16 (Gen 4.x) slots |
1 |
PCI Express x16 (Gen 5.x) slots |
1 |
Number of M.2 (M) slots |
3 |
