Overclockable ECC Registered DIMM
With over three decades of building reliable, high-quality memory modules for the world’s largest data centers, Kingston proudly introduces a new line of overclockable server-class memory, Kingston FURY™ Renegade Pro DDR5 RDIMM. To meet the computing demands of next-gen Intel® or AMD workstation and high-end desktop platforms requiring the use of DDR5 Registered DIMMs, Kingston FURY Renegade Pro DDR5 RDIMM provides creators, engineers and data science professionals with high-performance memory normally reserved for gamers, without sacrificing the data integrity features and superior quality grade of Registered DIMMs.
DDR5 Registered DIMMs support ECC, capable of detecting and correcting multi-bit errors. This is in addition to on-die ECC, featured on all DDR5 DRAM components, which performs single-bit error detection and correction to mitigate system lockups and data corruption.
Power users can automatically get the most out of their systems with Kingston FURY Renegade Pro DDR5 RDIMM, or choose one of the built-in profiles for optimum timings, speeds and voltage. Available in single-module capacities up to 32GB, kits of 4 up to 128GB and kits of 8 up to 256GB.
Overclocking with ECC
Maintain data integrity while pushing the limits of DDR5 performance.
Increased efficiency
With double the banks and burst lengths, keep up with the demands of the latest programs and applications with improved efficiency and lower latencies.
Intel® XMP 3.0 certified
Select one of the built-in profiles to maximise memory performance with advanced pre-optimised timings, speeds and voltage.
AMD EXPO™ Certified
AMD EXPO (Extended Profiles for Overclocking) Certified modules include Intel XMP 3.0 profiles, enabling compatibility with the platform of your choice.
Plug N Play*
Kingston FURY Renegade Pro DDR5 RDIMM modules automatically overclock to the highest listed speed.
Features
Buffered memory type: Registered (buffered)
Feature: On-Die ECC
CAS latency: 36
Internal memory: 256 GB
Memory layout (modules x size): 8 x 32 GB
Internal memory type: DDR5
Memory data transfer rate: 5600 MT/s
Component for: PC/Server
Memory form factor: 288-pin DIMM
Feature: ECC
Memory ranking: 1
Memory voltage: 1.25 V
Module configuration: 4096M x 80
Row cycle time: 48 ns
Refresh row cycle time: 295 ns
Row active time: 32 ns
Row Precharge Time (TRP): 16
Feature: Intel Extreme Memory Profile (XMP)
Intel Extreme Memory Profile (XMP) version: 3.0
Feature: SPD profile
Programming power voltage (VPP): 1.8 V
Country of origin: China, Taiwan
Product colour: Black
Cooling type: Heatsink
Lead plating: Gold
Feature: JEDEC standard
Operational conditions
Operating temperature (T-T): 0 - 95 °C
Storage temperature (T-T): -55 - 100 °C
Technical details
Compliance certificates: RoHS
Sustainability
Doesn't contain: Halogen
Weight & dimensions
Width: 3.8 mm
Depth: 133.3 mm
Height: 31.2 mm
Weight: 173.6 g
Packaging data
Package width: 104.1 mm
Package depth: 167.6 mm
Package height: 35.6 mm
Package weight: 190.51 g
Logistics data
Master (outer) case width: 207 mm
Master (outer) case length: 469.9 mm
Master (outer) case height: 105.4 mm
Master (outer) case gross weight: 2.21 kg
Products per master (outer) case: 10 pc(s)

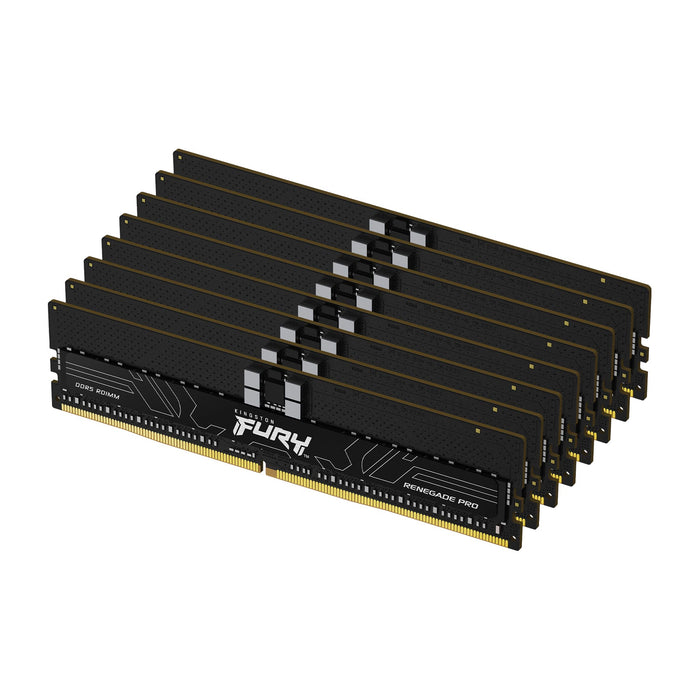

Kingston Technology FURY 256GB 5600MT/s DDR5 ECC Reg CL36 DIMM (Kit of 8) Renegade Pro XMP. Component for: PC/Server, Internal memory: 256 GB, Memory layout (modules x size): 8 x 32 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 36, ECC, Product colour: Black
Kingston
MBR CODE - KF556R36RBK8-256
EAN - 0740617335552
