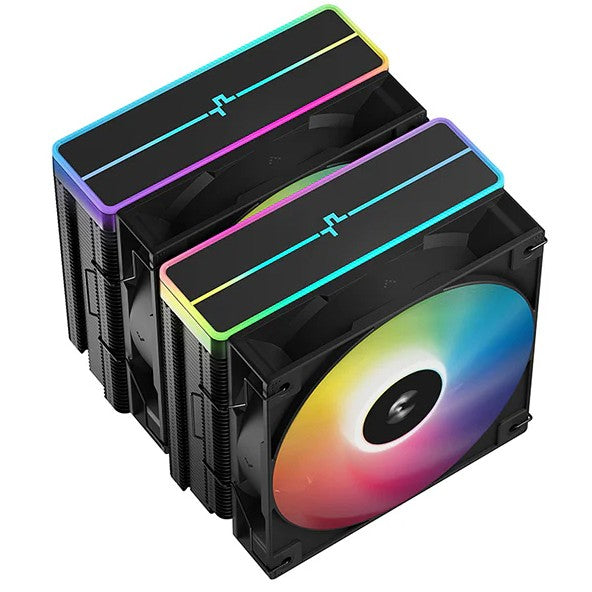

The DeepCool AG620 BK ARGB V2 is an all-black dual-tower CPU cooler focused on high performance efficiency boasting six heat pipes packed in the dense heat sink tower for optimal heat dissipation and paired with two fine-tuned 120mm ARGB PWM fans for powerful cooling.
BRILLIANCE IN DESIGN
DeepCool's recognizable matrix fin stack design is finished in a dark black coating and provides an excellent cost-to-value ratio. Paired with a unique ARGB top cover and a minimalist translucent logo design, AG620 BK ARGB V2 provides an unprecedented and unique lighting effect.
SUBSTANTIAL COOLING POWER
An upgrade to DeepCool's newest Core Touch Technology 2.0 dramatically improves cooling capacity. The heatpipes have been optimized and laid out to promote the best possible thermal transfer through the nickel-plated coldplate from the CPU IHS. As a result, CTT 2.0 provides a bump in cooling performance.
BALANCED BIDIRECTIONAL HEAT PIPE TECHNOLOGY
By optimizing the internal capillary structure and injecting a precise amount of liquid, the heat pipe achieves the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case.This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance over a wide TDP range.

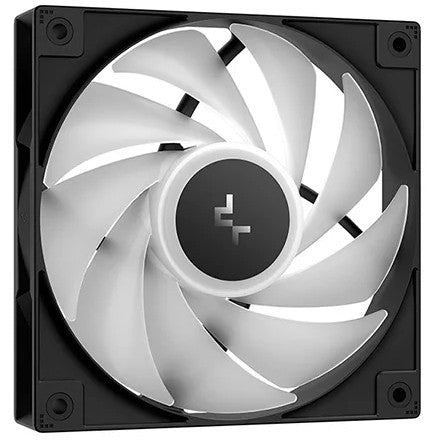

BRIGHT, QUIET, AND CAPABLE
Get the best of both worlds with two fine-tuned 120mm ARGB PWM fans designed for optimal balance in top performance under load to silent efficiency when idle. Highly effective with strong static pressure for rapid heat transfer throughout the heat sink.

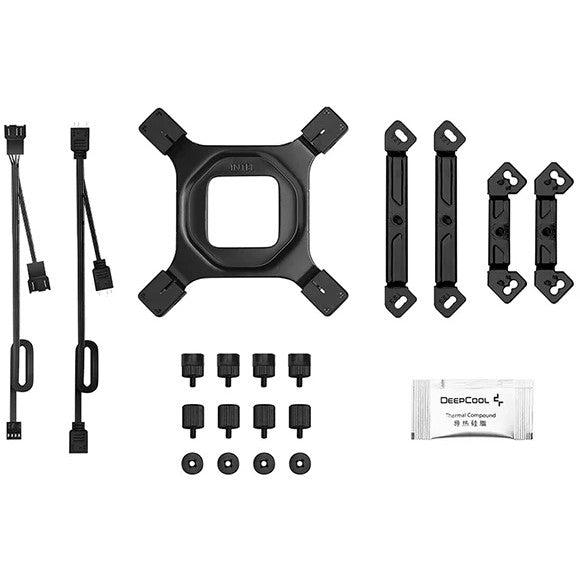

SIMPLE AND SECURE INSTALLATION
The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.
Performance
Suitable location: Chipset, Motherboard
Type: Air cooler
Fan diameter: 12 cm
Supported processor sockets: Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Maximum airflow: 67.88 cfm
Fan noise level (max): 29.4 dB
Quantity per pack: 1 pc(s)
Fan speed (min): 270 RPM
Fan speed (max): 2145 RPM
Fan static pressure: 2.04 mmH2O
Design
Product colour: Black
Number of fans: 2 fan(s)
Number of heat pipes: 6
Feature: Illumination LED
LED connector type: 3-pin
Fan connector: 4-pin
Power
Rated voltage: 12 V
Fan power consumption: 1.68 W
Rated current: 0.14 A
LED voltage: 5 V
LED power consumption (fan): 6.4 W
Weight & dimensions
Width: 136 mm
Depth: 129 mm
Height: 161 mm
Weight: 1.33 kg
Fan dimensions (W x D x H): 120 x 120 x 25 mm
DeepCool AG620 BK ARGB V2. Type: Air cooler, Fan diameter: 12 cm. Width: 136 mm, Depth: 129 mm, Height: 161 mm. Product colour: Black
Deepcool
MBR CODE - R-AG620-BKAMMN-GJD
EAN - 6933412729242
