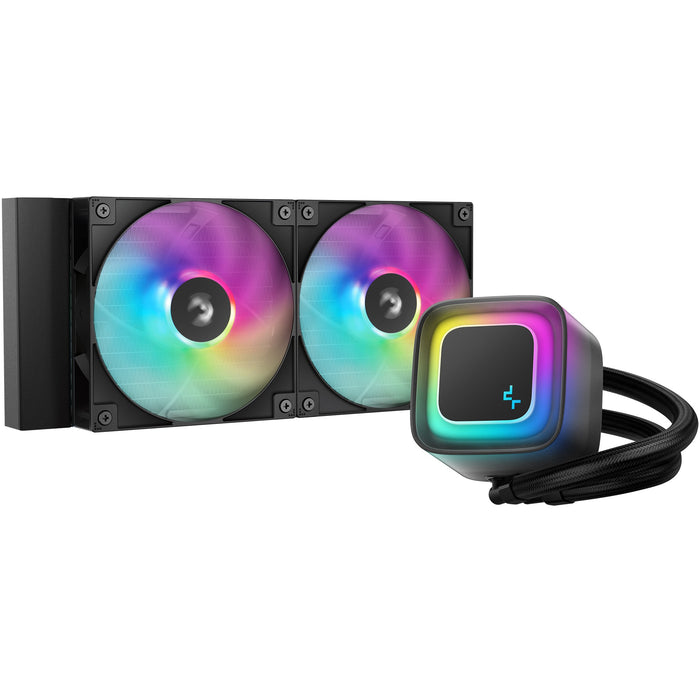

The LE240 V2 builds on DeepCool’s proven LE lineup with upgraded performance and a refreshed design. Its frosted pump head adds a modern touch, making it an excellent choice for entry-level cooling.
FROSTED ELEGANCE
The frosted pump head design creates a soft, diffused glow for an elegant visual effect, blending seamlessly into any build. The logo plate features a minimalist design that can be customized or left blank to suit your personal style.
COOL AND QUIET
The LE V2 series features an advanced water pump designed for efficient and quiet performance, powered by a 3-phase, 6-slot, 4-pole motor that rotates up to 3400 RPM.With PWM intelligent speed control via a 4-PIN cable, users can now easily adjust pump speed for further reduce noise while maintaining reliable cooling.
EFFICIENCY AT ITS FINEST

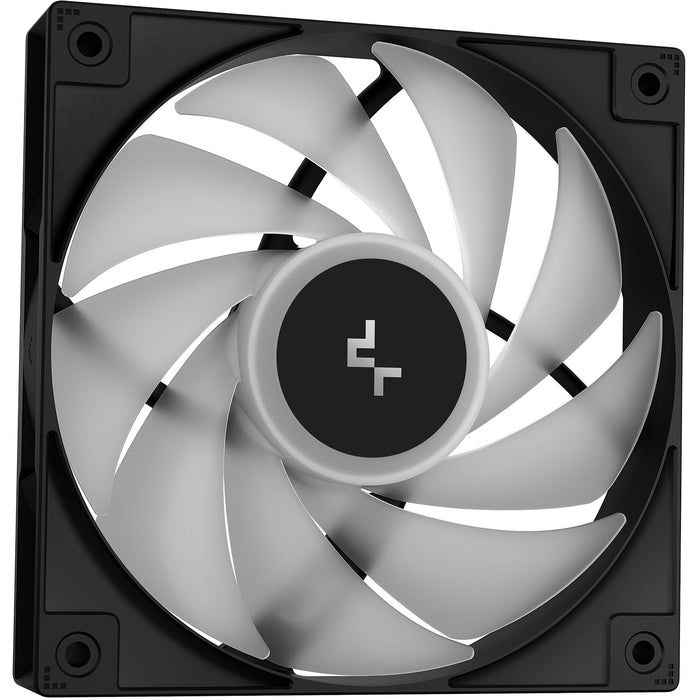

The included Hydro Bearing ARGB fans provide reliable cooling performance with vibrant lighting effects. Designed for durability and smooth operation, these fans maintain lower noise levels for everyday use.
ANTI-LEAK TECHNOLOGY
The LE V2 liquid cooler features DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.
SIMPLIFIED INSTALLATION

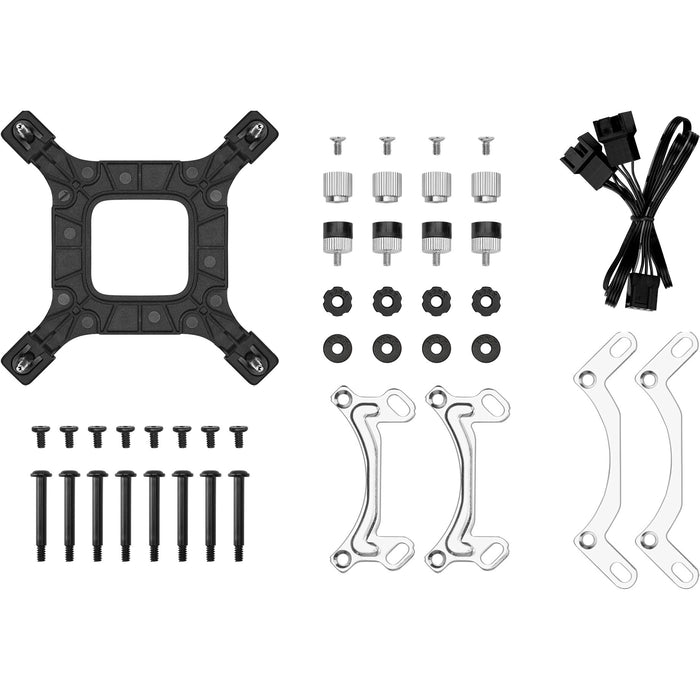

Pre-installed fans on the radiator streamline the setup process. Everything needed to mount the LE V2 to the latest mainstream CPUs is included in the box, so you are ready to go.
Performance
Suitable location: Processor
Type: All-in-one liquid cooler
Fan diameter: 12 cm
Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5
Maximum airflow: 75.89 cfm
Maximum air pressure: 2.53 mmH2O
Bearing type: Hydraulic
Fan noise level (max): 31.6 dB
Pump connector: 4-pin
Pump motor speed (min): 2500 RPM
Pump motor speed (max): 3400 RPM
Fan speed (min): 500 RPM
Fan speed (max): 2100 RPM
Design
Product colour: Black
Radiator material: Aluminum
Number of fans: 2 fan(s)
Feature: Illumination LED
LED connector type: 3-pin
Fan connector: 4-pin
Power
Fan power consumption: 2.04 W
Pump power consumption: 3.48 W
LED voltage: 5 V
Pump voltage: 12 V
Pump current: 290 mA
Fan voltage: 12 V
Fan current: 0.17 A
LED power consumption (fan): 2.1 W
LED power consumption (pump): 2.8 W
Weight & dimensions
Radiator width: 12 cm
Radiator depth: 28.2 cm
Radiator height: 2.7 cm
Tube length: 41 cm
Pump width: 7.8 cm
Pump depth: 9.1 cm
Height: 65 mm
Fan dimensions (W x D x H): 120 x 120 x 25 mm
DeepCool LE240 V2. Type: All-in-one liquid cooler, Fan diameter: 12 cm, Maximum air pressure: 2.53 mmH2O, Bearing type: Hydraulic. Height: 65 mm. Product colour: Black
Deepcool
MBR CODE - R-LE240-BKAMMC-G-2
EAN - 6933412729211
