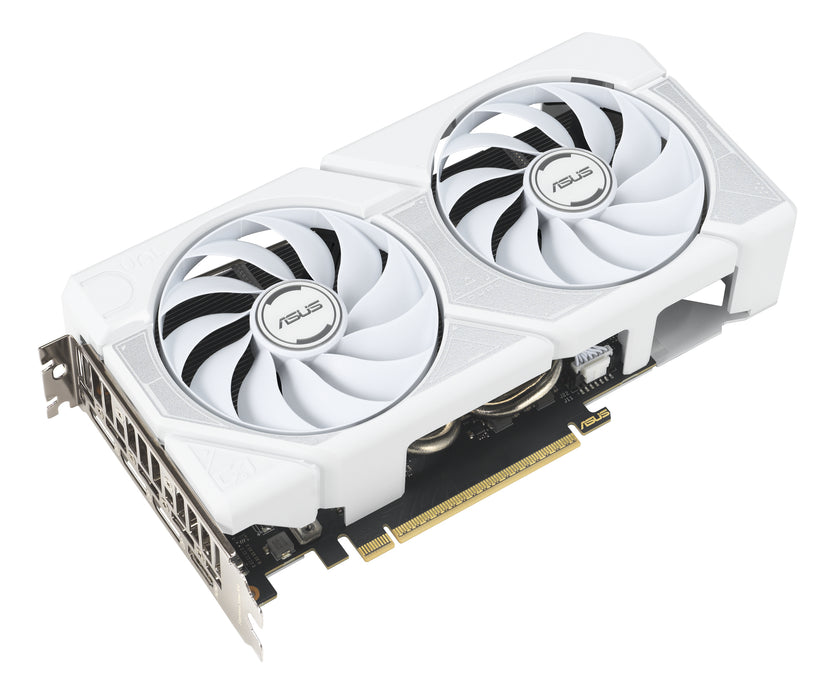

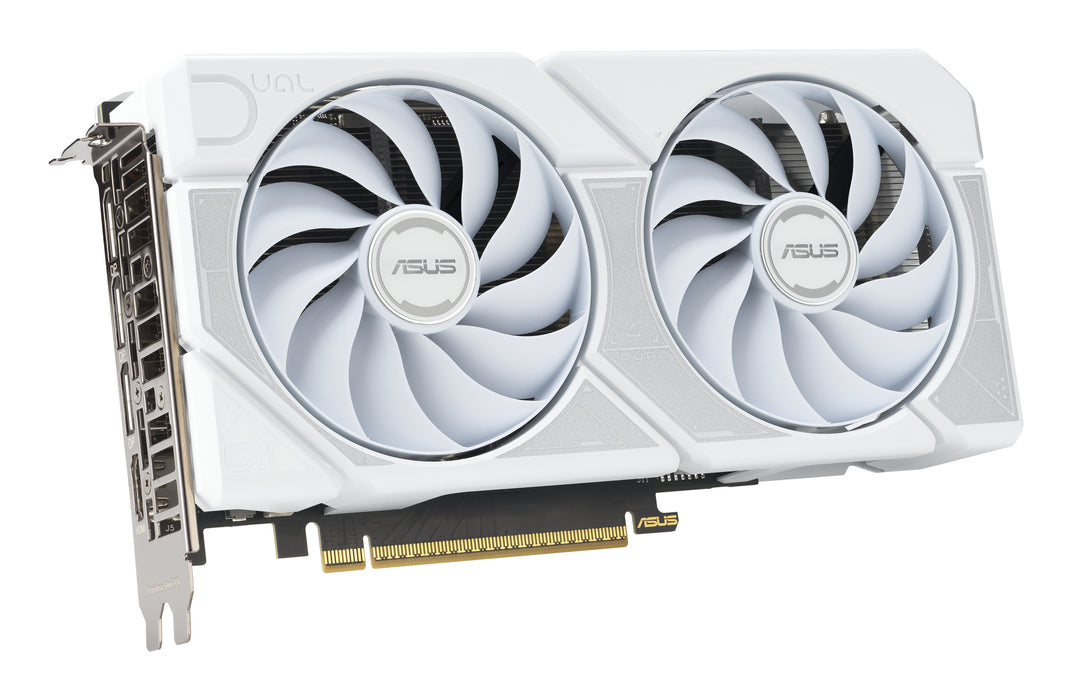

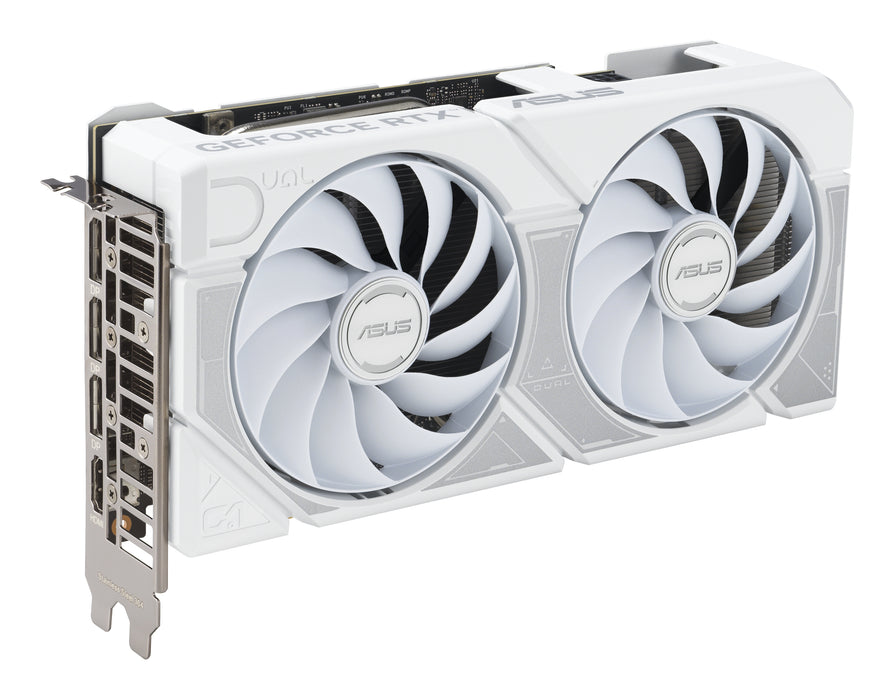

Dual Fans, Perfect Fit

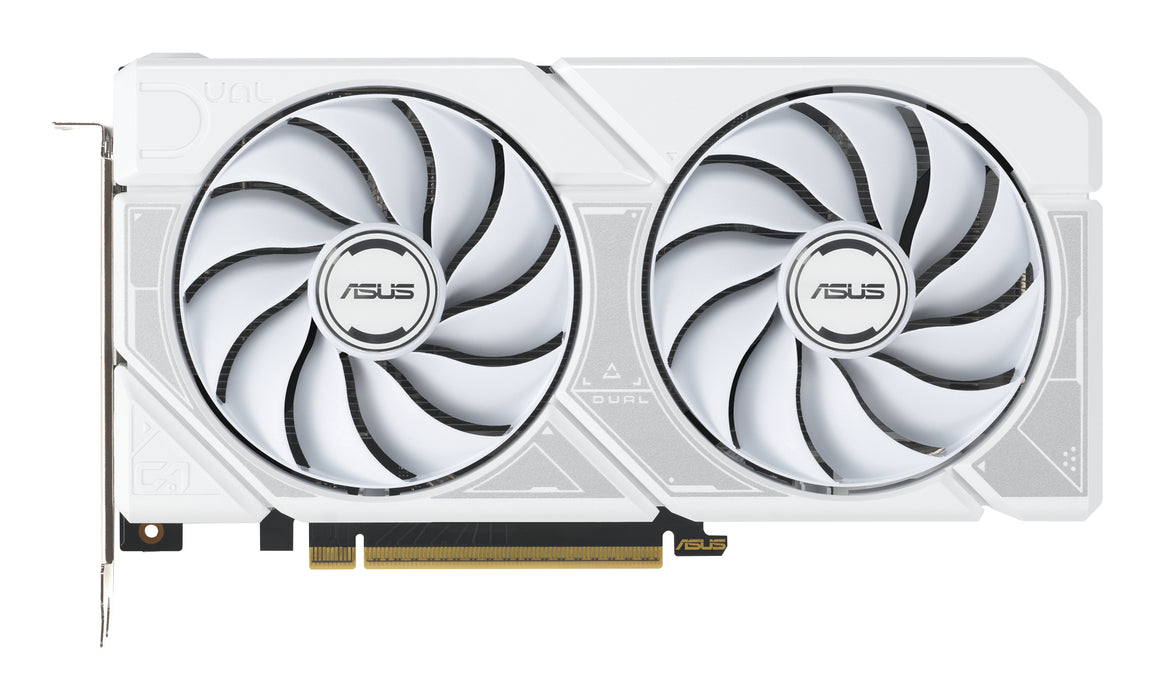

ASUS Dual GeForce RTX™ 5060 Ti White Edition combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Cooling

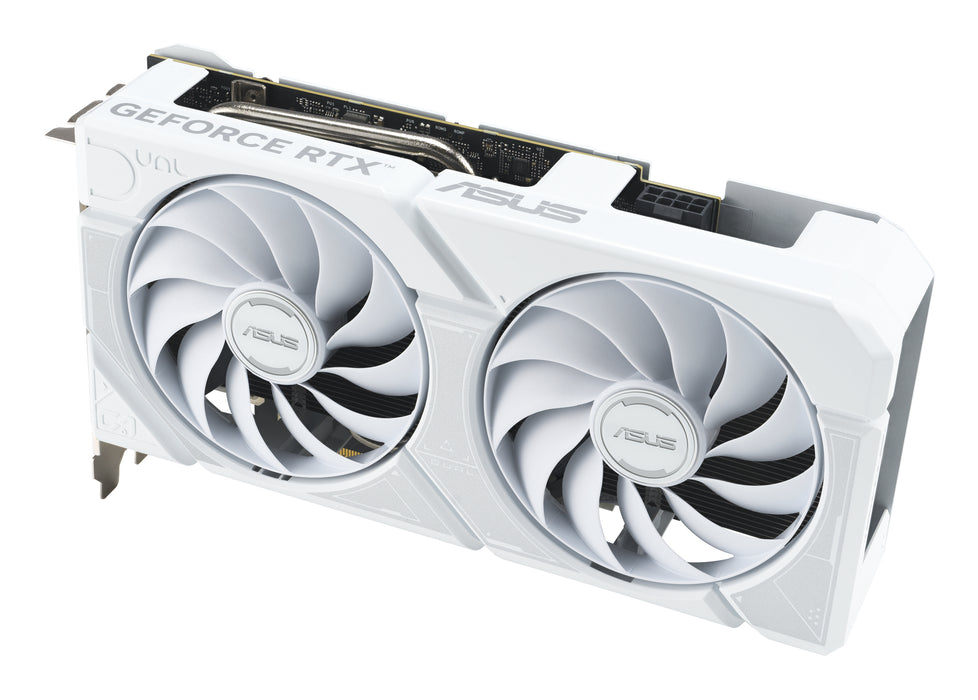

2.5-slot Design

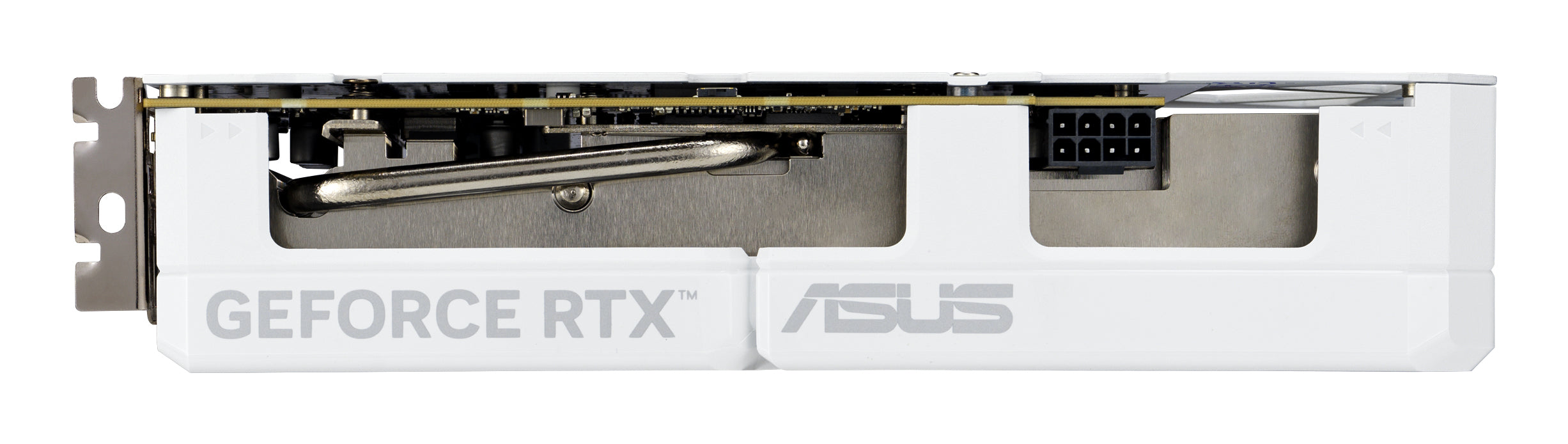

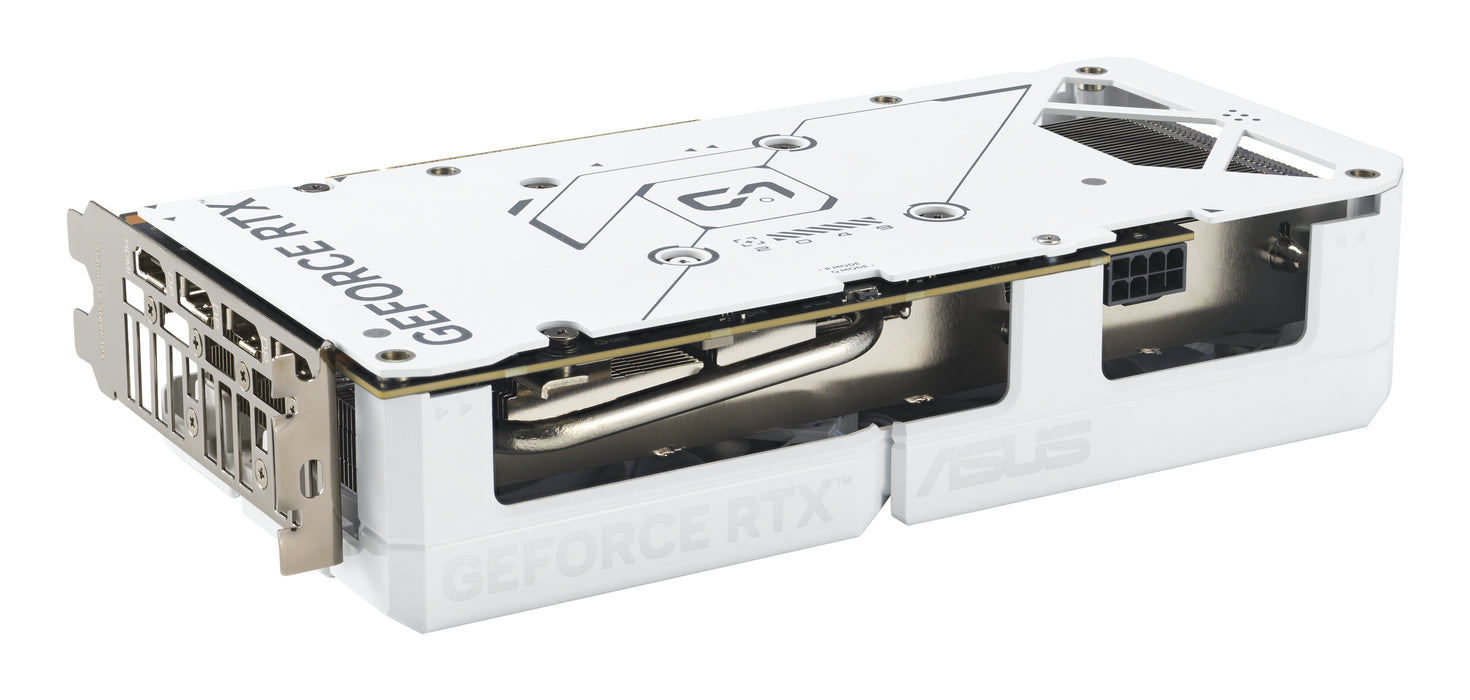

A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.

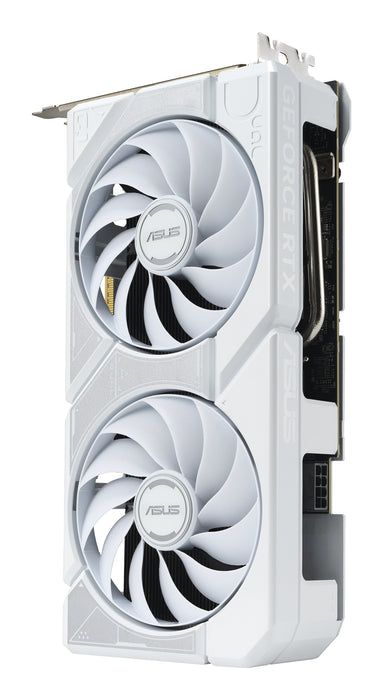

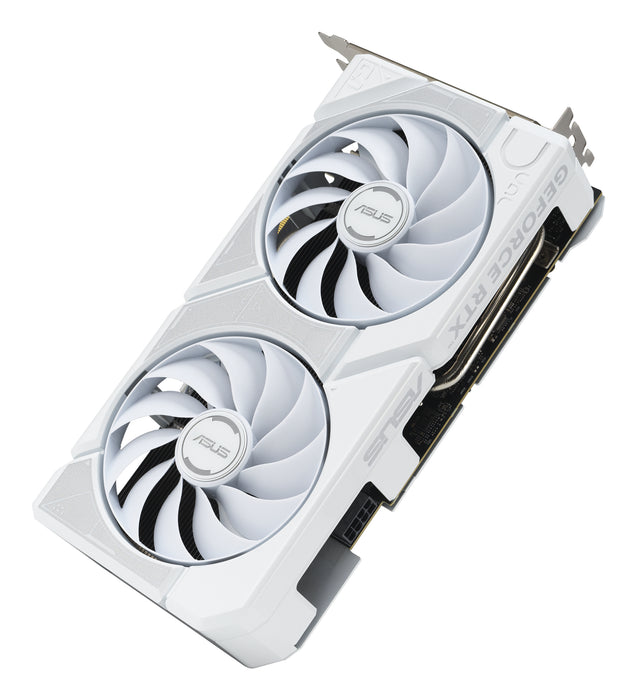

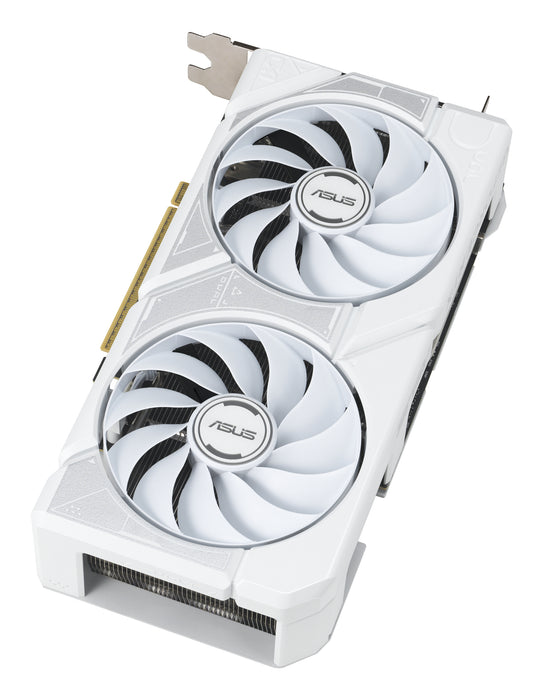

Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
| CUDA | Yes |
| CUDA cores | 4608 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5060 Ti |
| Processor boost clock speed | 2602 MHz |
| Processor frequency (OC mode) | 2632 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Data transfer rate | 28 Gbit/s |
| Interface type | PCI Express 5.0 |

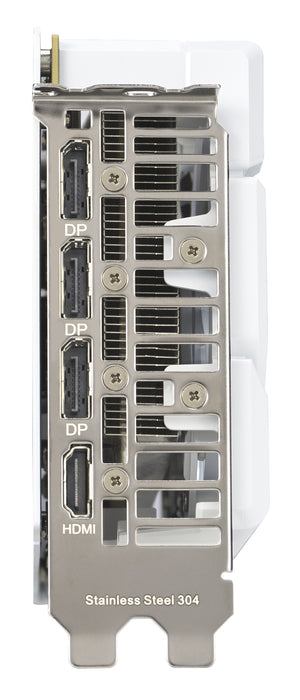

| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| TV tuner integrated | No |
| OpenGL version | 4.6 |
| HDCP | Yes |
| HDCP version | 2.3 |
| NPU performance up to | 767 TOPs |
| Overclocked (OC) edition | Yes |
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 2 fan(s) |
| Number of slots | 2.5 |
| Product colour | White |
| Minimum system power supply | 550 W |

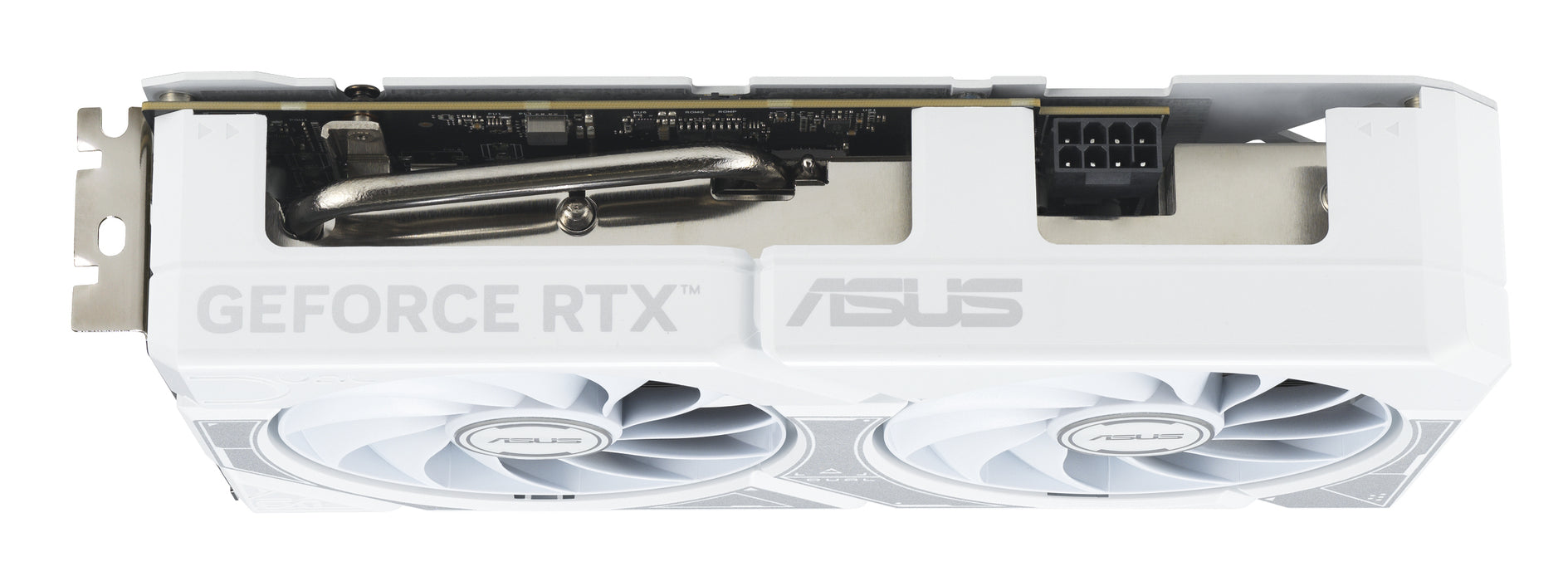

| Supplementary power connectors | 1x 8-pin |
| Weight | 656 g |
| Length | 229 mm |
| Depth | 50 mm |
| Height | 120 mm |
| Package width | 364 mm |
| Package depth | 217 mm |
| Package height | 66 mm |
| Package weight | 1.12 kg |

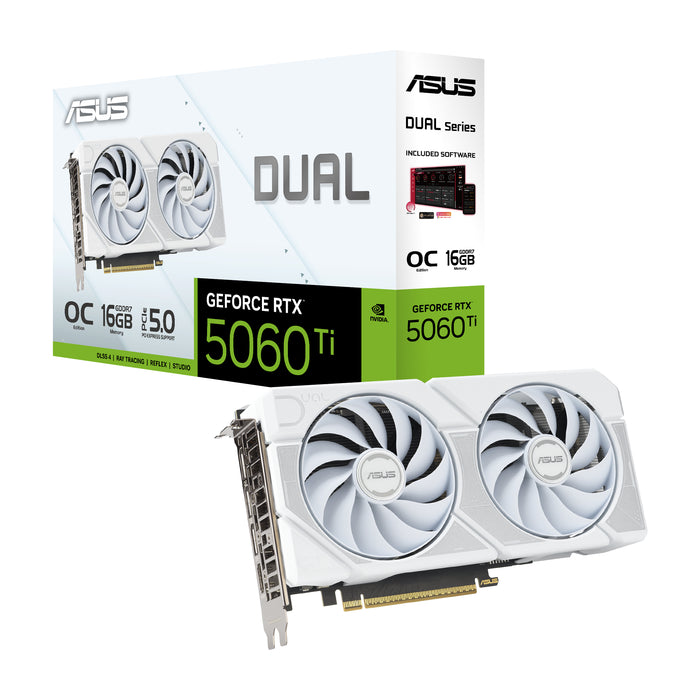

| Package type | Box |
| Manual | Yes |
