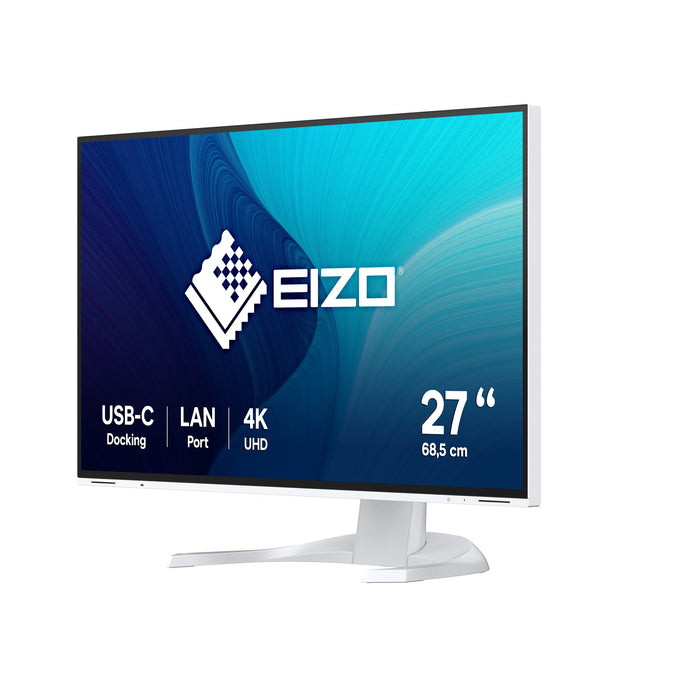

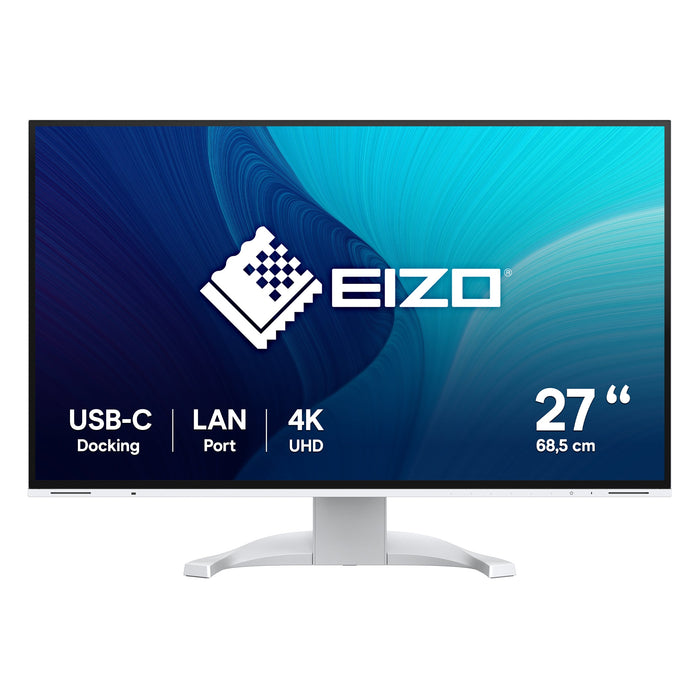

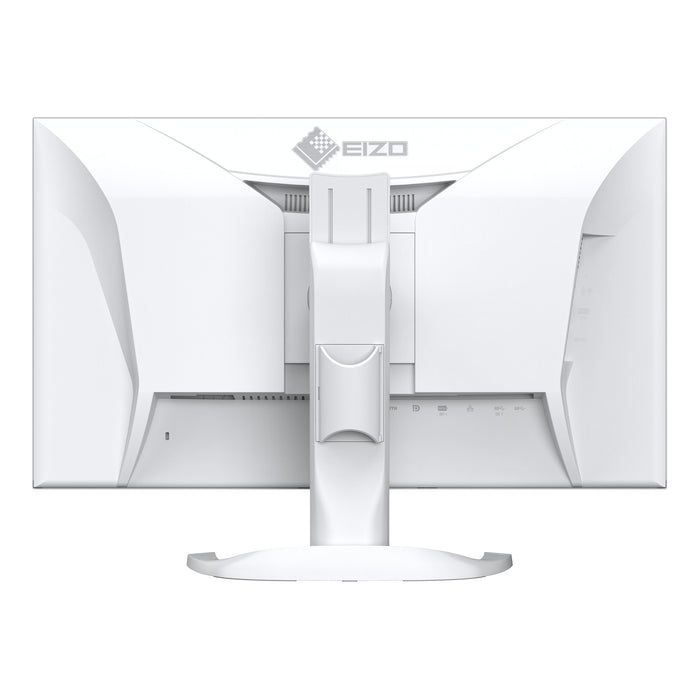

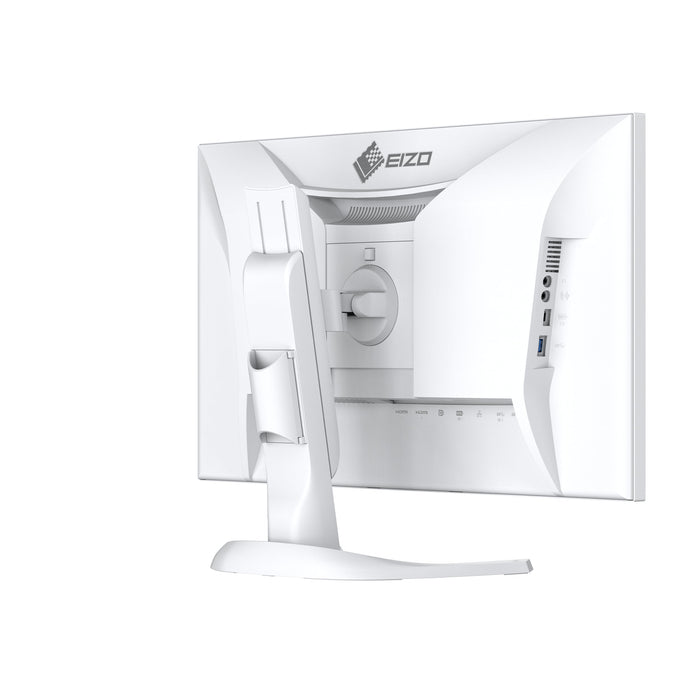

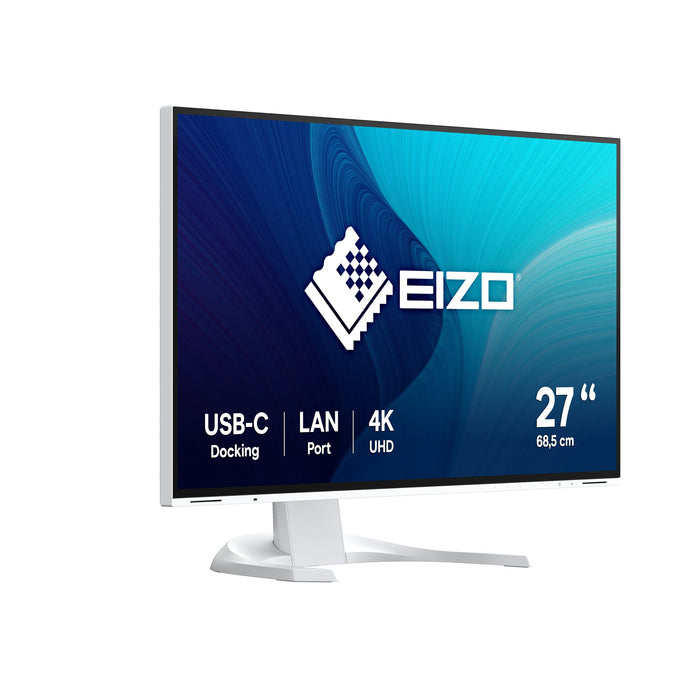

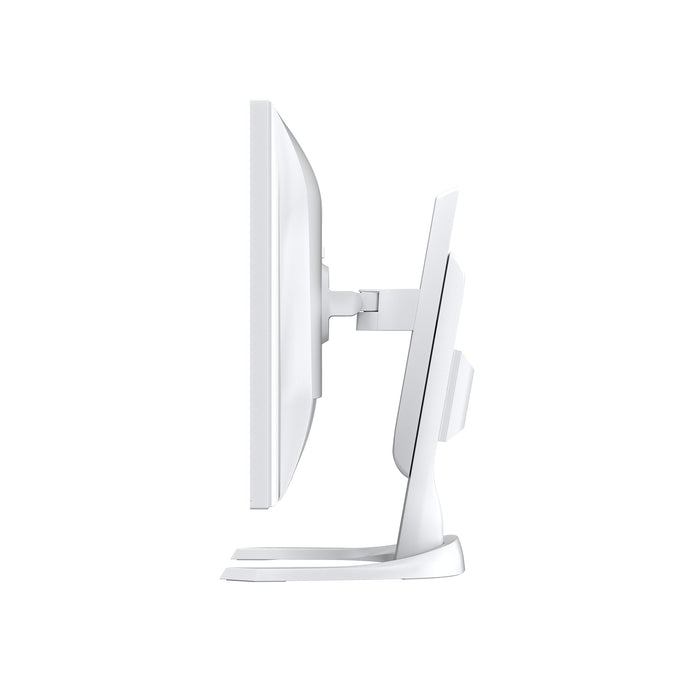

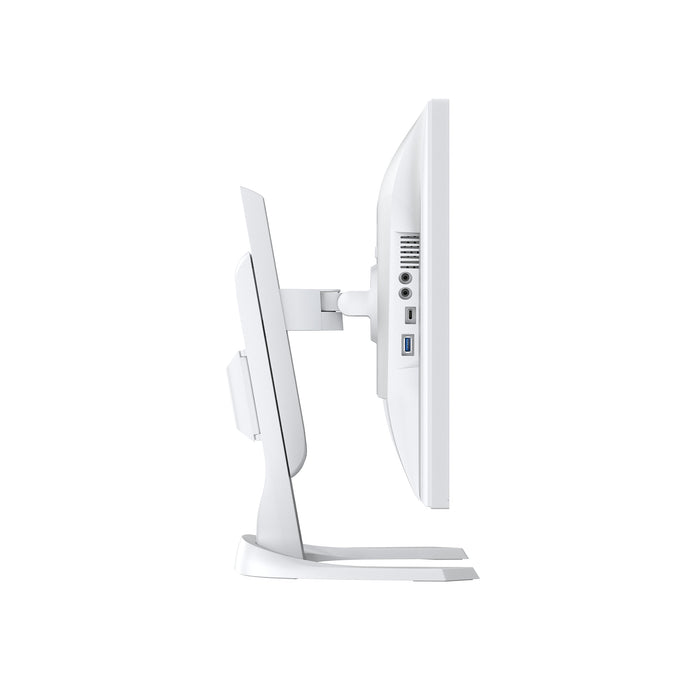

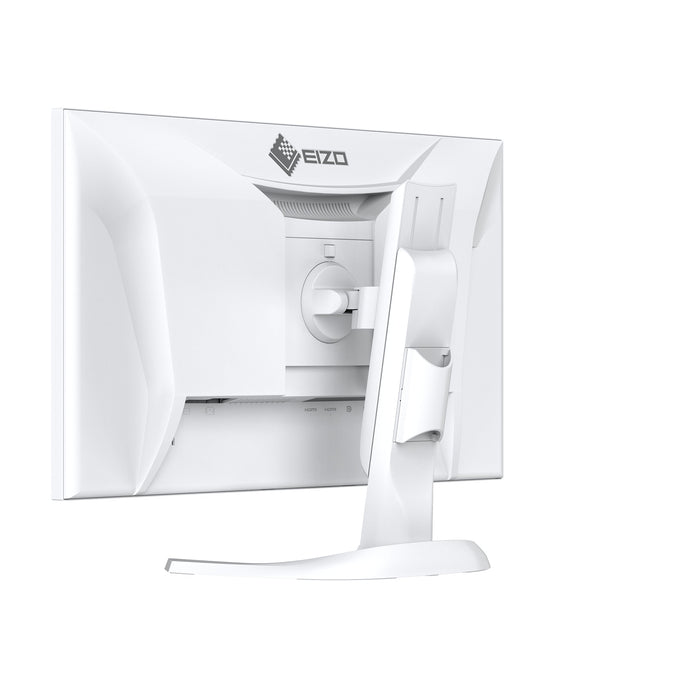

The EV2740X makes a clear statement for performance. 4K UHD resolution, USB-C docking and 94 W Power Delivery are convincing. Its 163 dpi display quality ensures crisp graphics and text. Docking convenience via its USB-C interface makes the FlexScan EV2740X the ideal display solution for professional office or CAD applications. Switching smoothly between office and home office is a breeze thanks to the USB-C port. Especially notebook and tablet users benefit from this. A single connection to the computer is sufficient for charging power, video signal, audio and USB data including network. The casing is available in black or white; even the cables are color-coordinated. The monitor is equipped with two HDMI ports as well as one DisplayPort and USB-C port each. With its two USB upstream ports, the EV2740X can be used as a keyboard/mouse switcher. For example, if both a home PC and a company computer are connected to the monitor in the home office, both computers can be operated with a single keyboard and mouse. When using its Picture-by-Picture function, it even displays two signal sources simultaneously.
| Display diagonal |
68.6 cm (27") |
| Display resolution |
3840 x 2160 pixels |
| HD type |
4K Ultra HD |
| Native aspect ratio |
16:9 |
| Display technology |
LCD |
| Panel type |
IPS |
| LED backlight |
Yes |
| Backlight type |
LED |
| Touchscreen |
No |
| Display brightness (typical) |
350 cd/m² |
| Response time |
5 ms |
| Anti-glare screen |
Yes |
| Screen shape |
Flat |
| Supported graphics resolutions |
720 x 400, 1280 x 1024 (SXGA), 3840 x 2160, 800 x 600 (SVGA), 2560 x 1440, 1600 x 1200 (UXGA), 1024 x 768 (XGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Contrast ratio (typical) |
2000:1 |
| Maximum refresh rate |
60 Hz |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
16.7 million colours |
| Pixel pitch |
0.155 x 0.155 mm |
| Pixel density |
163 ppi |
| Viewable size, horizontal |
59.7 cm |
| Viewable size, vertical |
33.6 cm |
| Digital horizontal frequency |
31 - 135 kHz |
| Digital vertical frequency |
29 - 61 Hz |
| Display diagonal (metric) |
68.5 cm |
| Colour gamut standard |
sRGB |
| sRGB coverage (typical) |
100% |
| NVIDIA G-SYNC |
No |
| AMD FreeSync |
No |
| Flicker-free technology |
Yes |
| Low Blue Light technology |
Yes |
| Built-in speaker(s) |
Yes |
| Built-in camera |
No |
| Market positioning |
Office |
| Product colour |
White |
| Built-in USB hub |
Yes |
| USB upstream port type |
USB Type-B, USB Type-C |
| Number of upstream ports |
2 |
| Number of USB Type-B upstream ports quantity |
1 |
| Number of USB Type-C upstream ports quantity |
1 |
| USB Type-A downstream ports quantity |
3 |
| USB Type-C downstream ports quantity |
1 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
94 W |
| HDMI |
Yes |
| HDMI ports quantity |
2 |
| DisplayPorts quantity |
1 |
| Headphone out |
Yes |
| Headphone outputs |
2 |
| Headphone connectivity |
3.5 mm |
| Built-in KVM switch |
Yes |
| HDCP |
Yes |
| HDCP version |
1.4/2.3 |
| Ethernet LAN |
Yes |
| VESA mounting |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Height adjustment |
Yes |
| Adjustable height (max) |
19.5 cm |
| Pivot |
Yes |
| Pivot angle |
0 - 90° |
| Swivelling |
Yes |
| Swivel angle range |
-90 - 90° |
| Tilt adjustment |
Yes |
| Tilt angle range |
-5 - 35° |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
German, English, Spanish, French, Italian, Swedish |
| Energy efficiency class (SDR) |
D |
| Energy efficiency class (HDR) |
Not available |
| Energy consumption (SDR) per 1000 hours |
18 kWh |
| Power consumption (typical) |
16 W |
| Power consumption (standby) |
0.35 W |
| Power consumption (max) |
186 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| European Product Registry for Energy Labelling (EPREL) code |
1397122 |
| Width (with stand) |
612 mm |
| Depth (with stand) |
242 mm |
| Height (with stand) |
565 mm |
| Weight (with stand) |
8.2 kg |
| Width (without stand) |
612 mm |
| Depth (without stand) |
61 mm |
| Height (without stand) |
359 mm |
| Weight (without stand) |
5.5 kg |
| Cables included |
AC, USB Type-C to USB Type-C |
| Quick start guide |
Yes |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR, EPEAT Climate +, EPEAT Gold, TCO |
| Compliance certificates |
CB, CCC, CE, China RoHS, Federal Communications Commission (FCC), GS mark, ICES, PSE, RCM, RoHS, cTUVus, UKCA, VCCI, WEEE |
| Certification |
CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified Generation 10, EPEAT 2018 (US), TÜV/Blue Low Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC |
