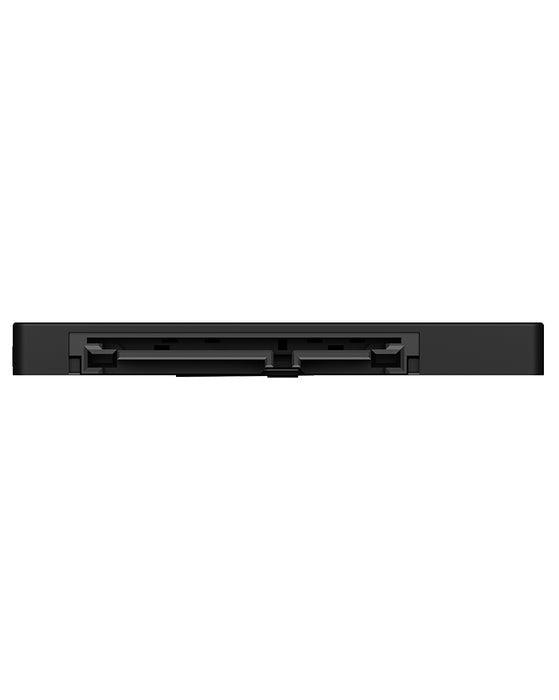

Simply convert from M.2 to 2.5'' format. If no M.2 slot is available, an M.2 SSD can still be fitted: just use an existing SATA 22-pin or a 7-pin & 15-pin SATA III connector via our IB-M2S253 adapter. Up to 6 Gbit/s data transfer rate is possible.
Flexibility

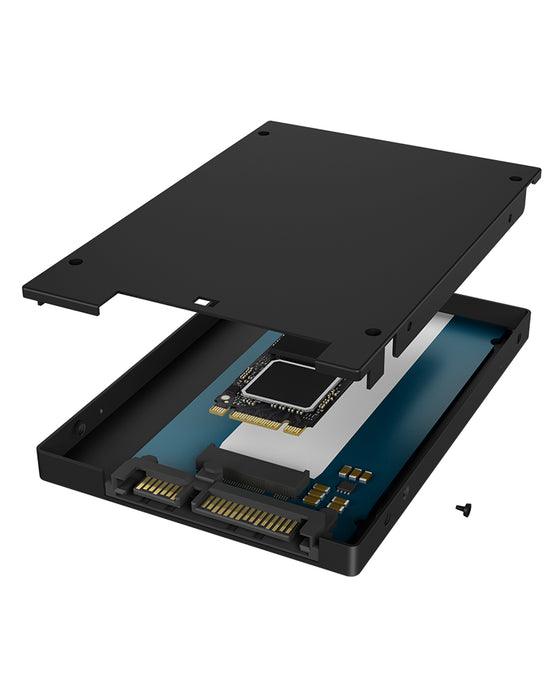

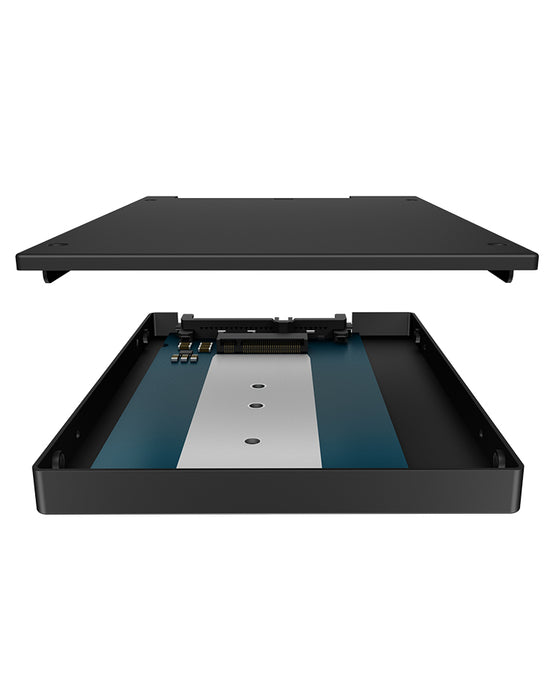

The four fixtures for all common M.2 lengths ensure maximum flexibility, even when installing a shorter M.2 SSD. The M.2 sizes 22x 30, 42, 60 and 80 mm are possible with the IB-M2S253 and are very easy to install.
High-quality workmanship

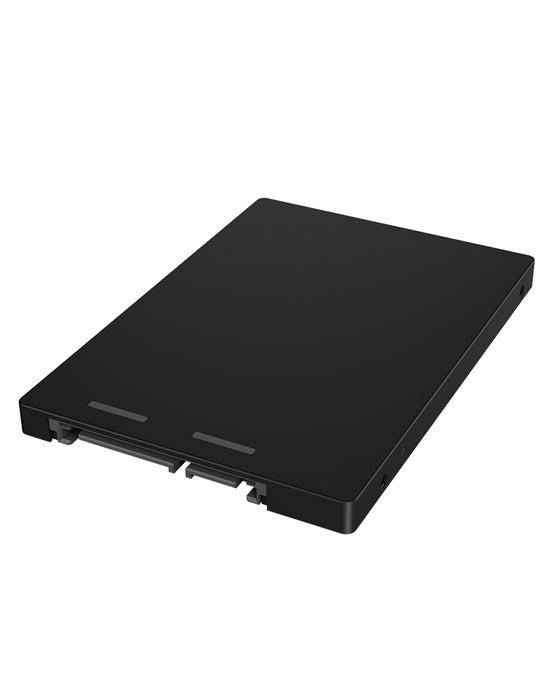

The adapter features a plain black colour and the usual dimensions of a standard 2.5'' SSD. Made of
aluminium, it is particularly robust and durable. With 2.5'', a height of 7 mm and the usual drill holes for installation, the adapter ensures 100% 2.5'' comfort.
| Number of storage drives supported | 1 |
| Storage drive size | M.2 |
| Supported storage drive interfaces | Serial ATA, Serial ATA II, Serial ATA III |
| Supported storage drive heights | 22 mm |
| Supported storage drive lengths | 30,42,60,80 mm |
| USB connectivity | No |
| Product type | SSD enclosure |
| Product colour | Black |
| Material | Aluminium |
| Data transfer rate | 6 Gbit/s |
| Country of origin | China |
| Windows operating systems supported | Yes |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 46 g |
| Package width | 27 mm |
| Package depth | 105 mm |
| Package height | 200 mm |
| Package weight | 128 g |
| Screws included | Yes |
| Manual | Yes |
| Harmonized System (HS) code | 84718000 |
| Master (outer) case width | 500 mm |
| Master (outer) case length | 220 mm |
| Master (outer) case height | 300 mm |
| Master (outer) case gross weight | 5.1 kg |
| Products per master (outer) case | 40 pc(s) |
