Display
Panel type: ELED
Feature: LED backlight
Display diagonal: 81.3 cm (32")
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 400 cd/m²
HD type: Full HD
Feature: Touchscreen
Touchscreen technology: Capacitive
Response time: 8 ms
Contrast ratio (typical): 5000:1
Dynamic contrast ratio marketing name: Mega DCR
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.36375 x 0.36375 mm
Display diagonal (metric): 81 cm
Horizontal scan range: 30 - 81 kHz
Vertical scan range: 48 - 75 Hz
Native refresh rate: 60 Hz
Haze rate: 2%
Pixel frequency (max): 594 MHz
Colour gamut: 72%

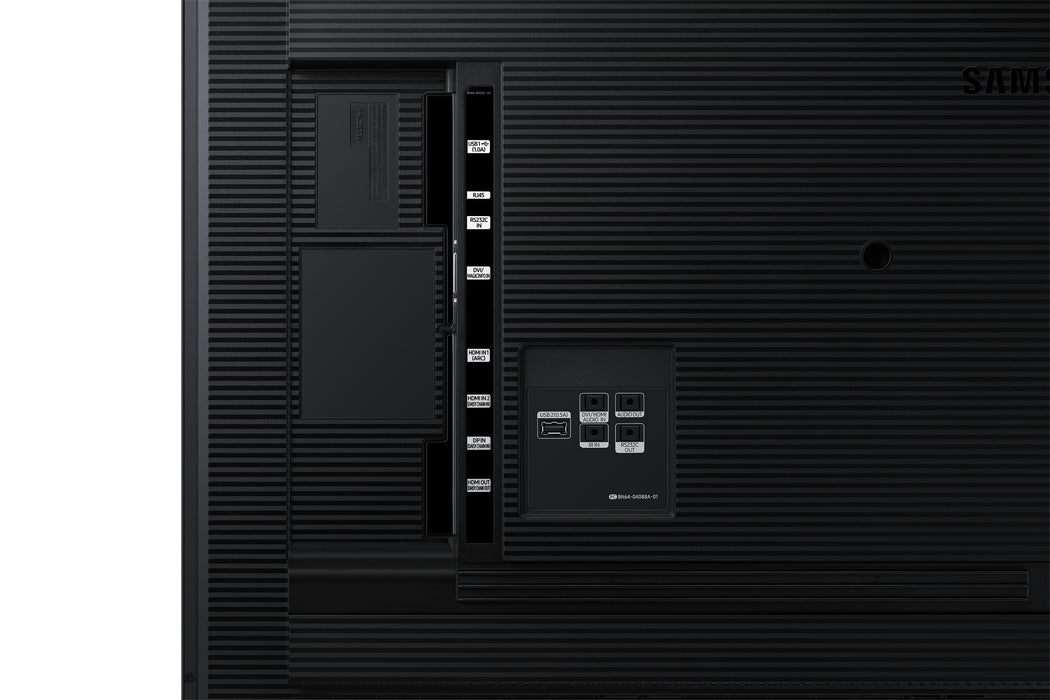

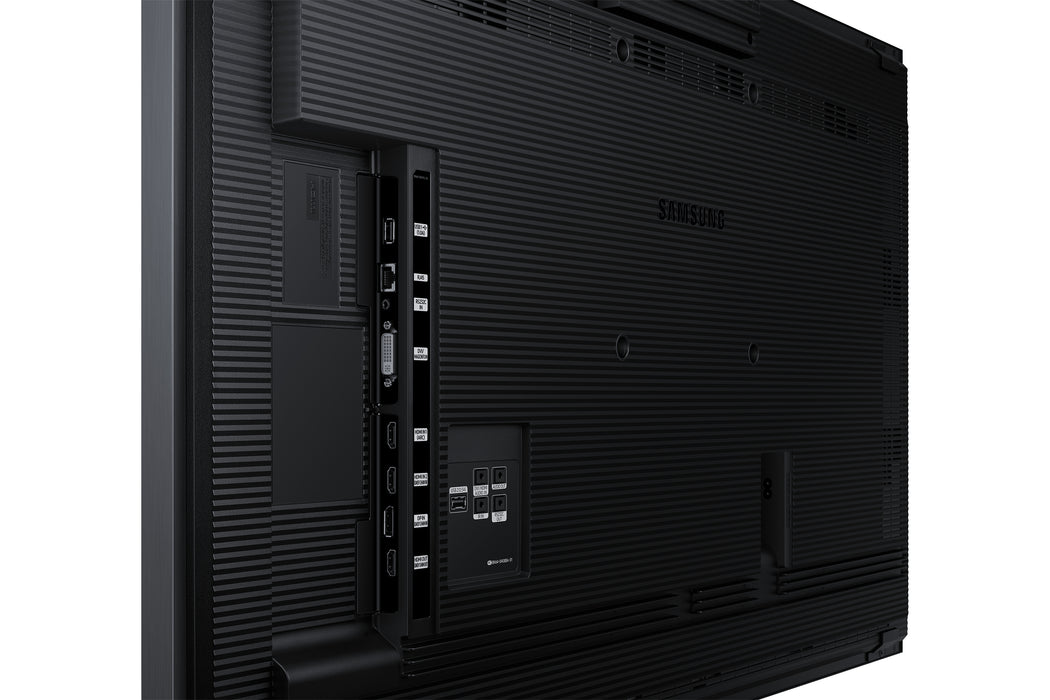

Ports & interfaces
HDMI ports quantity: 2
HDMI version: 2.0
HDMI input ports quantity: 2
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 2
Feature: Ethernet LAN
Feature: Wi-Fi
Audio (L/R) out: 1
Feature: RS-232 interface
Feature: Infrared data port
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 200 x 200 mm
Bezel colour: Charcoal Black
Performance
Purpose: Universal
Feature: HDCP
HDCP version: 2.2
Power
Power consumption (typical): 72 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A+++ to D
Computer system
Operating system installed: Tizen 4.0
Weight & dimensions
Display width: 744.4 mm
Display depth: 48.2 mm
Display height: 444.6 mm
Display weight: 8.3 kg
Packaging data
Package width: 872 mm
Package depth: 133 mm
Package height: 565 mm
Package weight: 11.1 kg
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 80%
Certificates
Certification: Class B60950-1
Other features
Annual energy consumption: 66 kWh
Feature: Bluetooth
Flash memory: 8000 MB
Video out: 1
Energy efficiency class (old): B
Optional features: WMN4070SESTN-L3240F

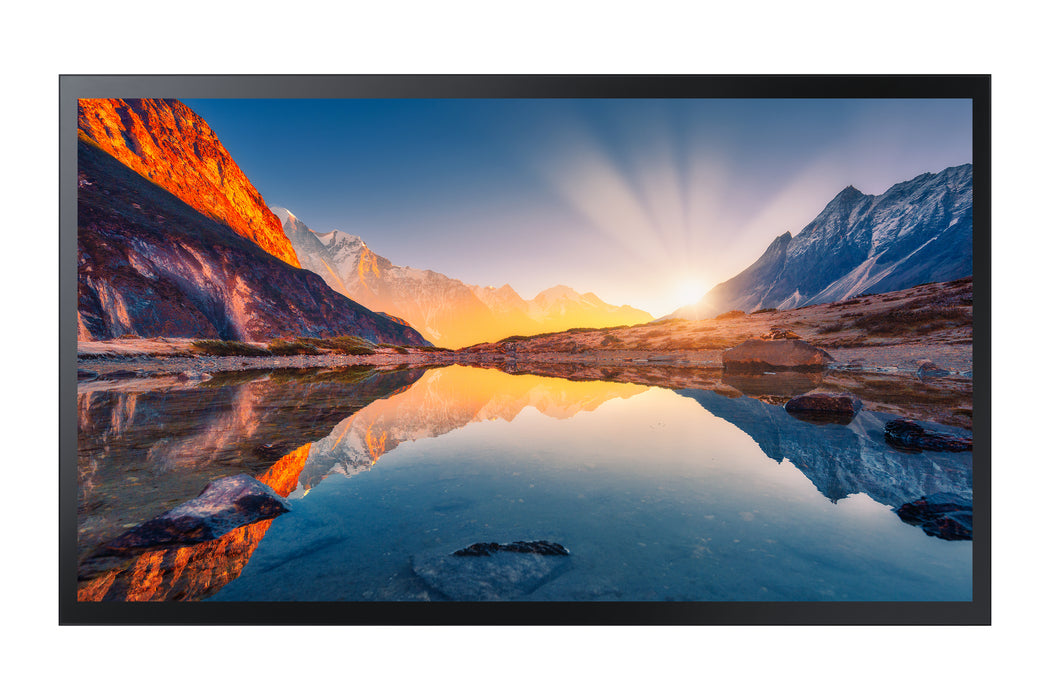

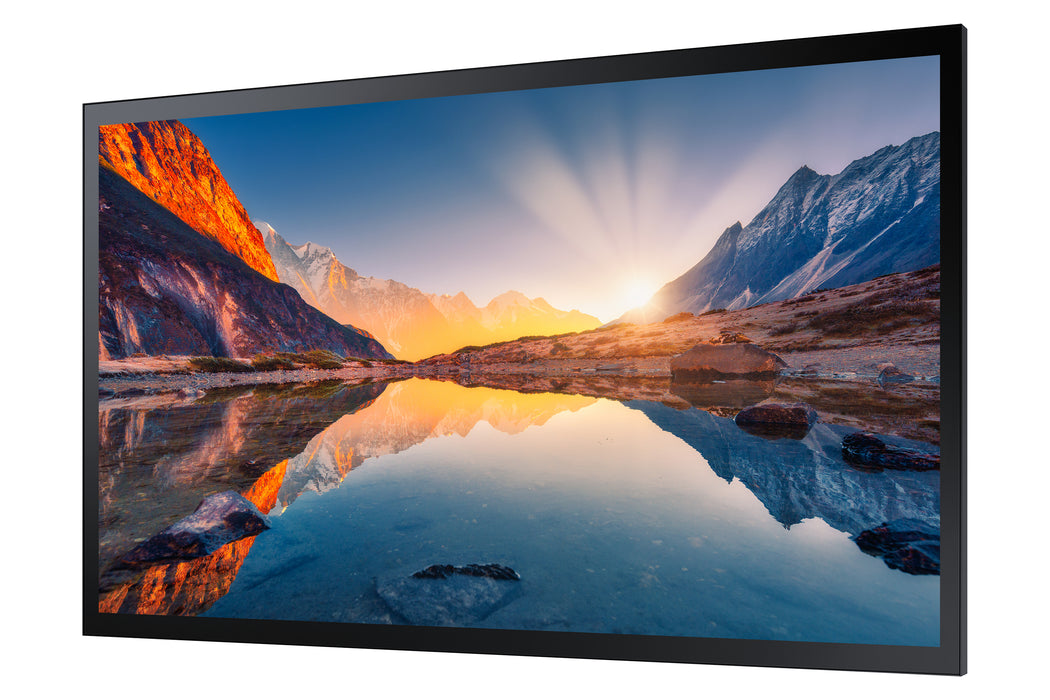

Samsung QM32R-T. Product design: Digital signage flat panel. Display diagonal: 81.3 cm (32"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 400 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating system installed: Tizen 4.0. Product colour: Black
SAMSUNG
MBR CODE - LH32QMRTBGCXEN
EAN - 8806090589720
| Panel type | ELED |
| LED backlight | Yes |
| Display diagonal | 81.3 cm (32") |
| Display technology | LCD |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 400 cd/m² |
| HD type | Full HD |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
| Response time | 8 ms |
| Contrast ratio (typical) | 5000:1 |
| Dynamic contrast ratio marketing name | Mega DCR |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.36375 x 0.36375 mm |
| Display diagonal (metric) | 81 cm |
| Horizontal scan range | 30 - 81 kHz |
| Vertical scan range | 48 - 75 Hz |
| Native refresh rate | 60 Hz |
| Haze rate | 2% |
| Pixel frequency (max) | 594 MHz |
| Colour gamut | 72% |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 2 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 2 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Audio (L/R) out | 1 |
| RS-232 interface | Yes |
| Infrared data port | Yes |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
| Bezel colour | Charcoal Black |
| Purpose | Universal |
| HDCP | Yes |
| HDCP version | 2.2 |
| Power consumption (typical) | 72 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A+++ to D |
| Operating system installed | Tizen 4.0 |
| Display width | 744.4 mm |
| Display depth | 48.2 mm |
| Display height | 444.6 mm |
| Display weight | 8.3 kg |
| Package width | 872 mm |
| Package depth | 133 mm |
| Package height | 565 mm |
| Package weight | 11.1 kg |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Certification | Class B 60950-1 |
| Annual energy consumption | 66 kWh |
| Bluetooth | Yes |
| Flash memory | 8000 MB |
| Video out | 1 |
| Energy efficiency class (old) | B |
| Optional features | WMN4070SE STN-L3240F |
