Display
Display technology: LED
Display diagonal: 139.7 cm (55")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Panel type: IPS
Pixel pitch: 0.63 x 0.63 mm
Display brightness: 500 cd/m²
Contrast ratio (typical): 1200:1
Contrast ratio (dynamic): 45000:1
Response time: 0.008 s
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Horizontal scan range: 62.7 - 72.3 kHz
Vertical scan range: 57 - 63 Hz
Haze rate: 25%
Colour gamut: 72%
Operating hours (hours/days): 24/7
Design
Placement supported: Indoor

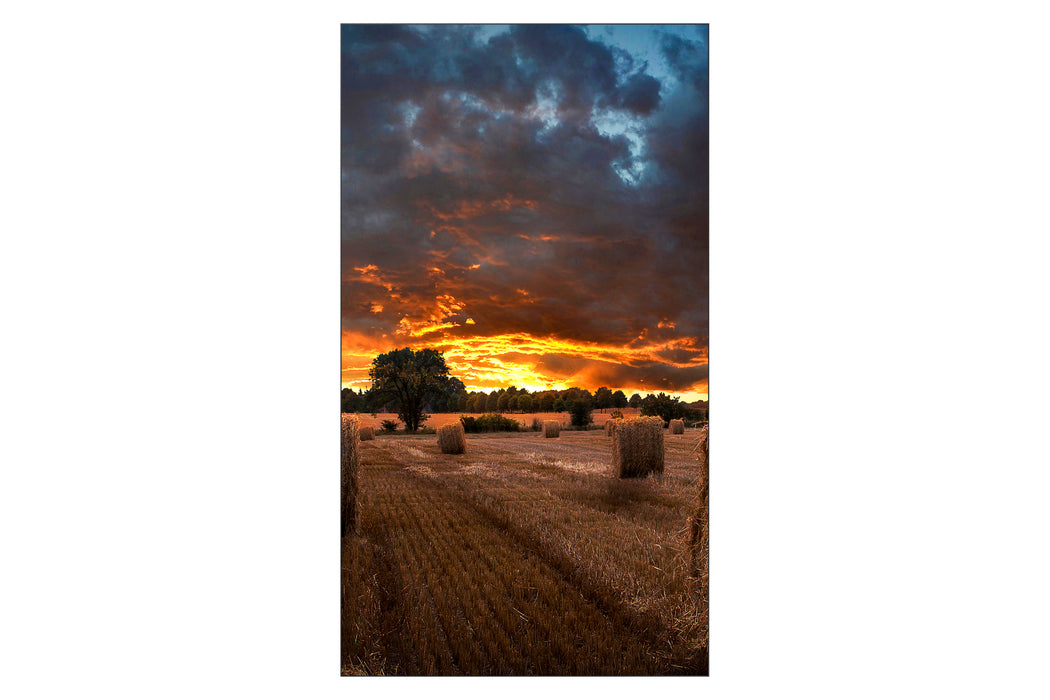

Orientation: Horizontal/Vertical
Bezel width (top): 2.25 mm
Bezel width (bottom): 1.25 mm
Feature: Wall mountable
Feature: VESA mounting

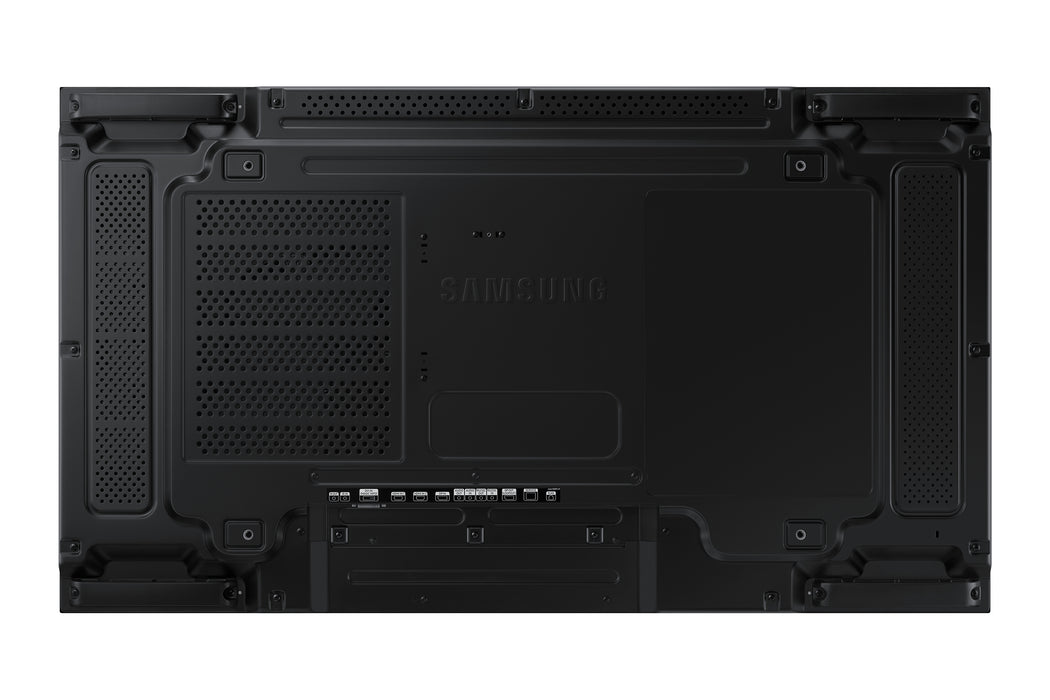

Panel mounting interface: 600 x 400 mm
Product colour: Black

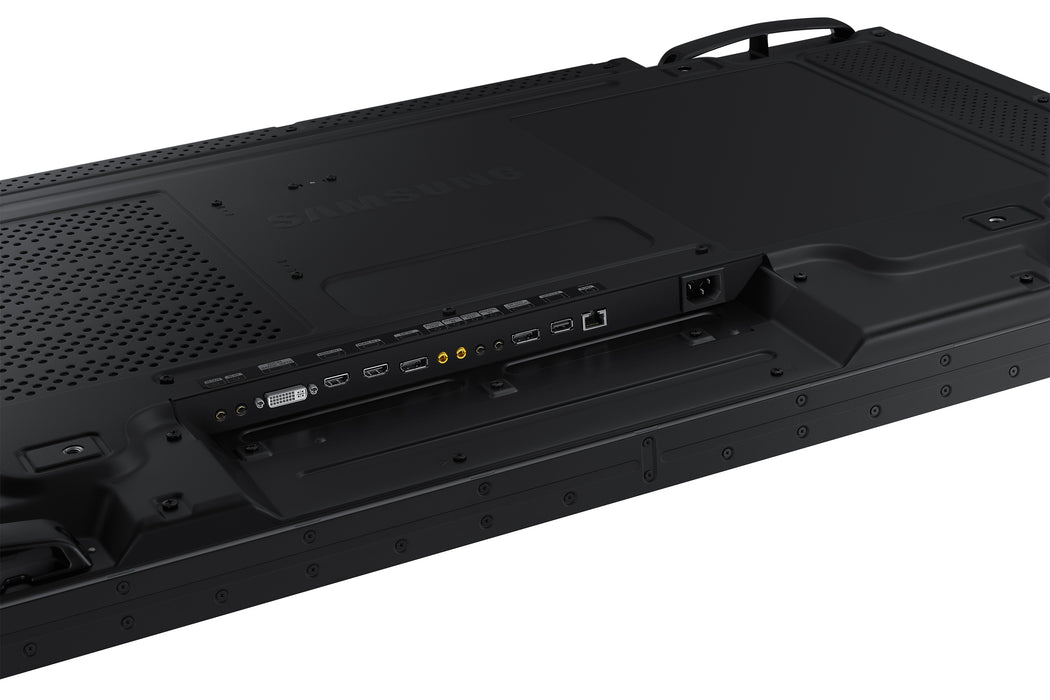

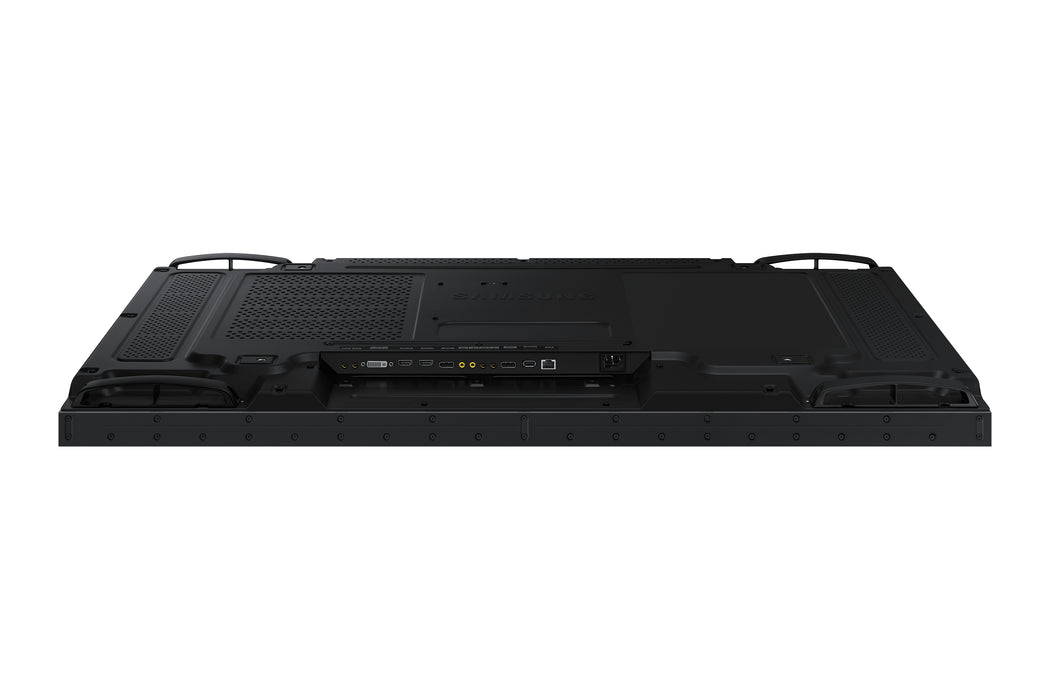

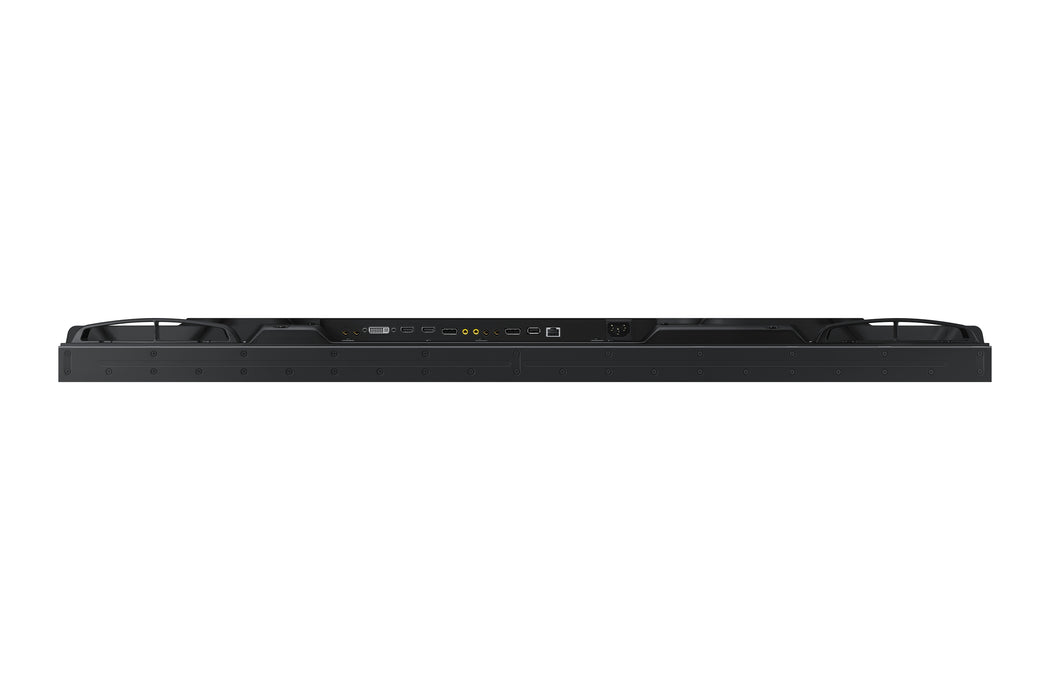

Ports & interfaces
HDMI ports quantity: 2
HDMI input ports quantity: 2
HDMI version: 2.0
Feature: DVI port
DVI-D ports quantity: 1
DisplayPorts quantity: 1
DisplayPorts in: 1
DisplayPort version: 1.2
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
RS-232 input ports: 1
RS-232 output ports: 1
Feature: USB port
USB ports quantity: 1
Feature: HDCP
HDCP version: 2.2
IR input ports quantity: 1
Feature: Audio input
Feature: Audio output
Power
Power consumption (typical): 220 W
Power consumption (standby): 0.5 W
Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 165 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): 10 - 90 °C
Weight & dimensions
Width: 1213.5 mm

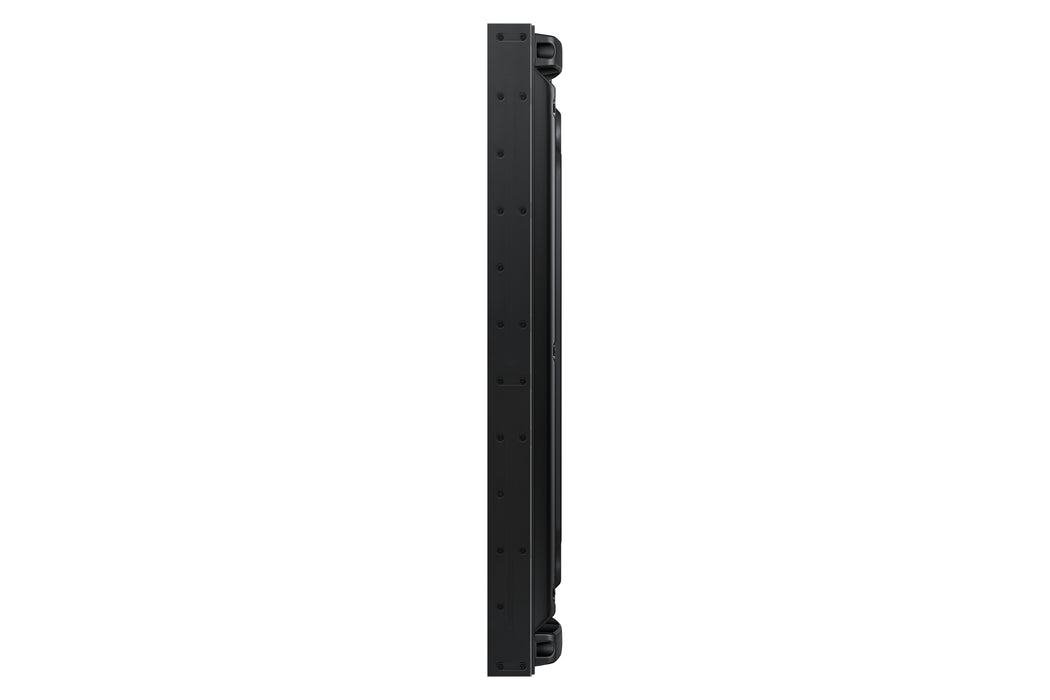

Depth: 73.1 mm
Height: 684.3 mm
Weight: 21.2 kg
Packaging data
Feature: Mounting kit
Package width: 1398 mm
Package depth: 257 mm
Package height: 844 mm
Package weight: 28.8 kg

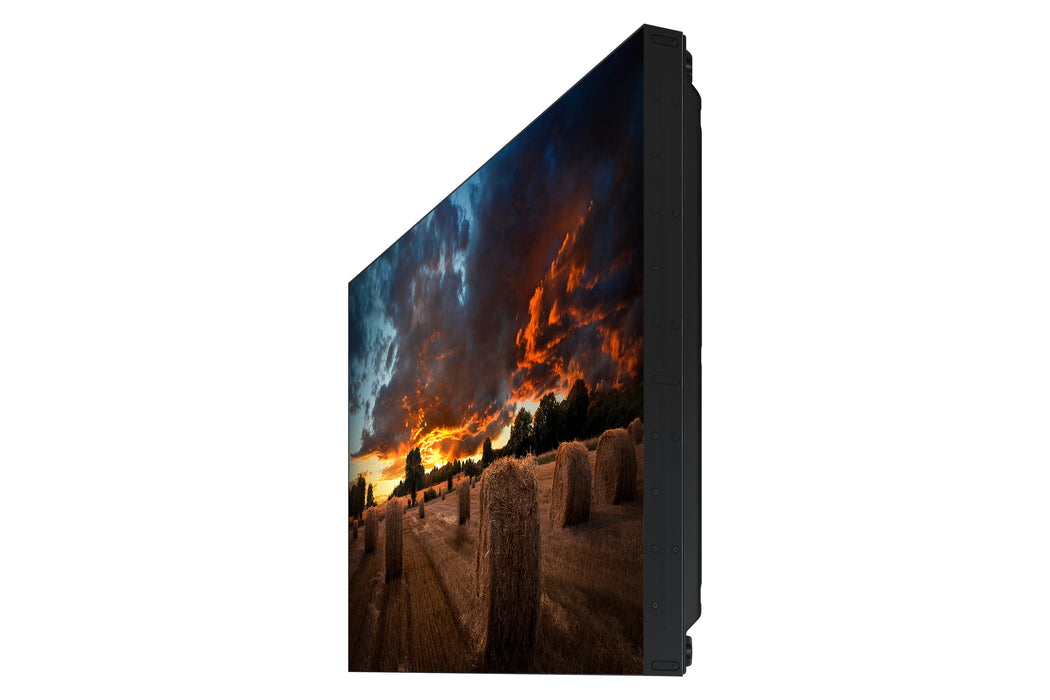

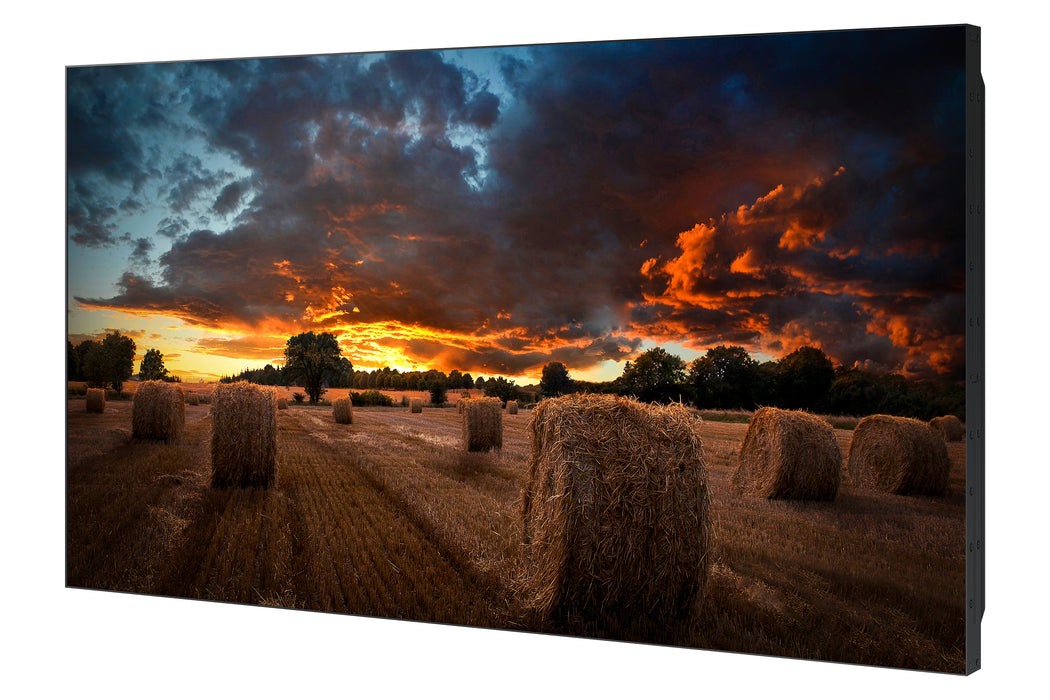

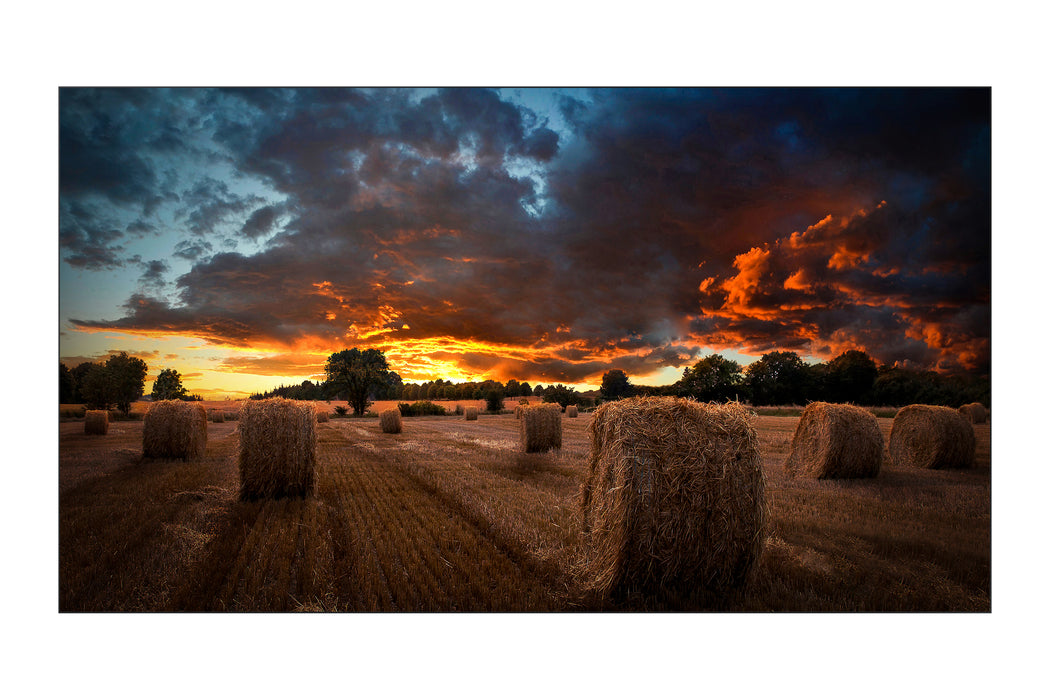

Samsung VM55B-U. Display diagonal: 139.7 cm (55"), Display resolution: 1920 x 1080 pixels, Display technology: LED, Display brightness: 500 cd/m², HD type: Full HD, Operating hours (hours/days): 24/7. Product colour: Black
SAMSUNG
MBR CODE - LH55VMBUBGBXEN
EAN - 8806094366105
| Display technology | LED |
| Display diagonal | 139.7 cm (55") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Panel type | IPS |
| Pixel pitch | 0.63 x 0.63 mm |
| Display brightness | 500 cd/m² |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 45000:1 |
| Response time | 0.008 s |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Horizontal scan range | 62.7 - 72.3 kHz |
| Vertical scan range | 57 - 63 Hz |
| Haze rate | 25% |
| Colour gamut | 72% |
| Operating hours (hours/days) | 24/7 |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Bezel width (top) | 2.25 mm |
| Bezel width (bottom) | 1.25 mm |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| Product colour | Black |
| HDMI ports quantity | 2 |
| HDMI input ports quantity | 2 |
| HDMI version | 2.0 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPorts in | 1 |
| DisplayPort version | 1.2 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| USB port | Yes |
| USB ports quantity | 1 |
| HDCP | Yes |
| HDCP version | 2.2 |
| IR input ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| Power consumption (typical) | 220 W |
| Power consumption (standby) | 0.5 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 165 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 10 - 90 °C |
| Certification | FCC (USA) Part 15, Subpart B Class ACE (Europe) : EN55032 : 2012 or 2015 ? EN55024:2010 or EN 55035:2017VCCI (Japan) : VCCI CISPR32:2016 Class BKCC/EK (Korea) : Tuner : KN13 / KN20Tunerless : KN22 / KN24BSMI (Taiwan) : CNS13438 ( ITE EMI ) Class A / CNS14 |
| Width | 1213.5 mm |
| Depth | 73.1 mm |
| Height | 684.3 mm |
| Weight | 21.2 kg |
| Mounting kit | Yes |
| Package width | 1398 mm |
| Package depth | 257 mm |
| Package height | 844 mm |
| Package weight | 28.8 kg |
