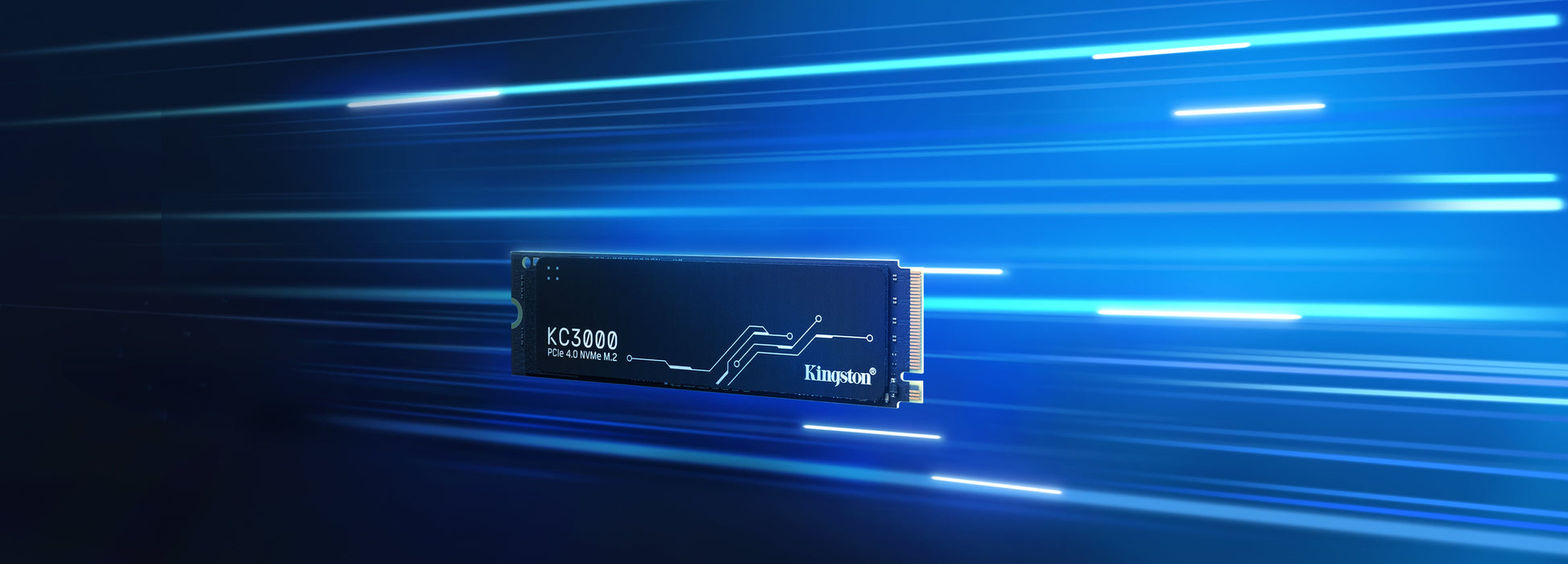

The compact M.2 2280 design fits seamlessly into motherboards and gives greater flexibility where high-power users appreciate responsiveness and superior loading times.
Full capacities available from 512GB–4096GB** to meet your data storage requirements.
PCIe 4.0 NVMe technology
Master intensive applications with speeds of up to 7,000/7,000MB/s* read/write.
Store more
Upgrade and manage storage with full capacities of up to 4096GB**.
Greater flexibility
Compact M.2 design fits easily into small-form-factor (SFF) systems, desktops and laptop PCs.
Low-profile graphene aluminium heat spreader
Exceptional thermal dissipation keeps your drive cool with maximum performance.
| SSD capacity | 512 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| Memory type | 3D TLC |
| Component for | PC/Laptop |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 7000 MB/s |
| Write speed | 3900 MB/s |
| Random read (4KB) | 450000 IOPS |
| Random write (4KB) | 900000 IOPS |
| Controller type | Phison E18 |
| Mean time between failures (MTBF) | 1800000 h |
| TBW rating | 400 |
| Power consumption (read) | 2.7 W |
| Power consumption (write) | 4.1 W |
| Power consumption (average) | 0.34 W |
| Power consumption (idle) | 0.005 W |
| Width | 80 mm |
| Depth | 22 mm |
| Height | 2.21 mm |
| Weight | 7 g |
| Package width | 129.5 mm |
| Package depth | 8.38 mm |
| Package height | 184.2 mm |
| Package weight | 31.33 g |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Cooling type | Heatsink |
| Country of origin | China, Taiwan |
| Master (outer) case width | 135.9 mm |
| Master (outer) case length | 203.2 mm |
| Harmonized System (HS) code | 84717070 |
| Master (outer) case height | 69.8 mm |
| Master (outer) case gross weight | 391.29 g |
| Products per master (outer) case | 10 pc(s) |
